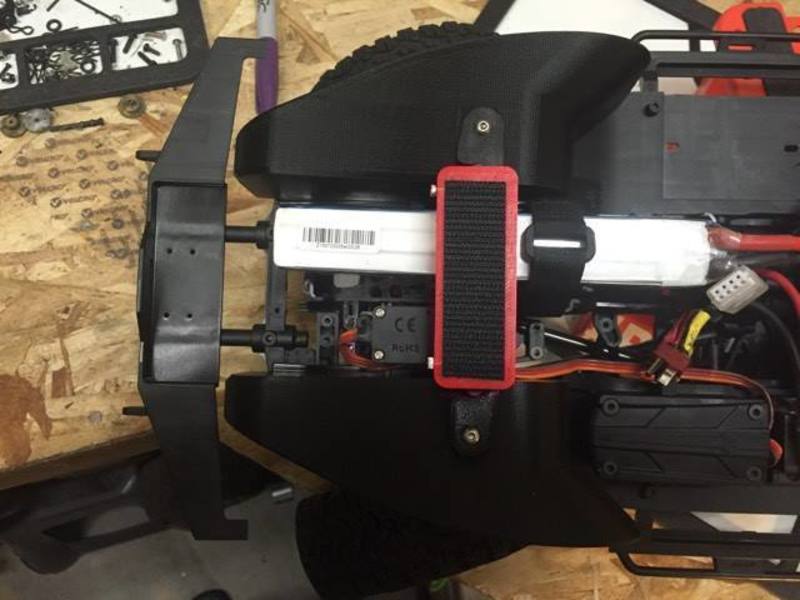

These are fenders designed to fit on the front of your new SCX-10 II in the stock configuration. The are extend to match the curve of the installed floor pan to help complete the look and have a more scale appearance.
Front Fenders: To mount you will reuse the front most chassis screw. You will also need 2 - 3x8mm screws to attach the top body post swing lock to the top of each fender.
Rear Fenders: To Mount, you will need 2 - 3x8mm w/lock nut to secure the front of the rear fender to the chassis.
PRINT: Rotate the fenders to print the flat side down. Print 1x Left, 1x Right and 2x Post Clips. PLA, 20% infill, 4 perimeters, 4 top/bottom layers, w/supports
Loading prints...
SCX-10 II Fenders
Creative Commons Public Domain
The creator has waived all rights to the work. You can copy, modify, distribute and perform the work, even for commercial purposes, without asking permission.
Licensed under CC0
