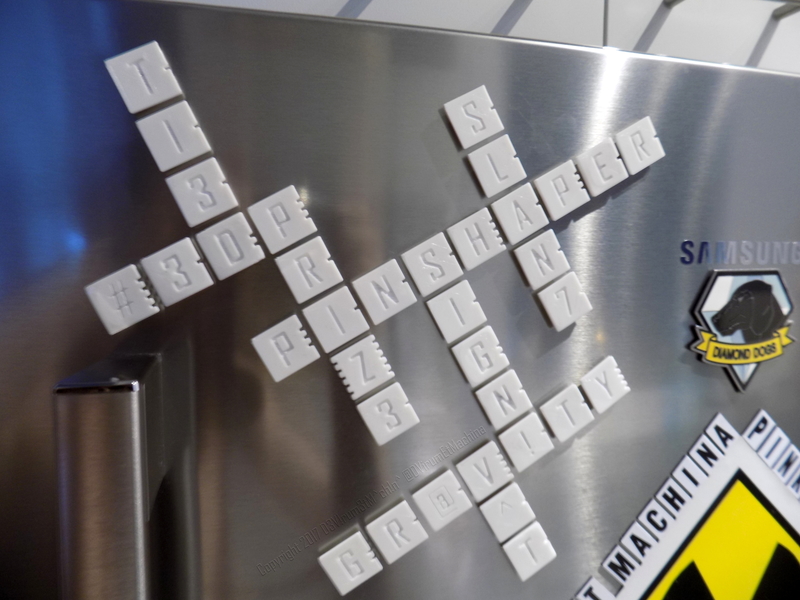

Magnetic $CR^BBL3
This WIP is a simple magnetic based Scrabble including Special characters for L337 $p3||!n9.
The Cutouts on the sides of the Tiles represent the Points for that Tile.
A Circular 10mm x 2mm Neodymium Magnet fits snuggly in the back of each Tile.
Magnetic $CR^BBL3 has been designed for close to Zero post-processing, you don't want have to deal with chemical fumes, unnecessary/excessive debris or particulate matter in a Closed Environment.
Use Glue or thin Double Sided Tape to cover the magnets with thin Felt or Velvet to protect your fridge or space station from scratches.
Until stated otherwise, ! will be making regular updates on this project so remember to check back here occasionally.
Standard Number of Alphabet Tiles:
A x3 - B x1 - C x2 - D x 3 - E x3 - F x2 - G x3 - H x2 - I x3 - J x1 - K x1 - L x3 - M x2
N x3 - O x3 - P x2 - Q x1 - R x3 - S x3 - T x3 - U x3 - V x2 - W x2 - X x1 - Y x2 - Z x1
Standard Number of Number Tiles:
1 x2 - 2 x2 - 3 x2 - 4 x 2 - 5 x2 - 6 x2 - 7 x2 - 8 x2 - 9 x2 - 0 x2
Standard Number of Special Character Tiles:
@ x1 - [ x2 - ] x2 - { x1 - } x1 - ! x2 - # x2 - | x2 - \ x2 - / x2 - ? x1 - ^ x1
> x2 - < x2 - : x1 - ( x1 - ) x1 - * x2 - + x2 - = x2 - $ x2
Things you need to make this project:
- 114 x 10mm x 2mm Neodymium Magnets.
- A 3D Printer.
- 3D Printing Filament.
- Suitable fabric for the backing of each magnet e.g thin Felt or Velvet.
- Sharp Scissors to cut 114 little circles out of your fabric.
- Glue or Thin double sided tape to affix the Fabric circles you've cut out to the back of each Magnet.
- Time. Lots of Time.
Number of 3d printed components required to make a complete set:
- 114 x Tiles
Print settings:
Printed on an Ultimaker 2 Extended + | 0.4mm Nozzle | Sliced with Cura slicing software
No Supports, No Bed/Platform Adhesion.
Build Plate Temp: 60Deg/C | printed in Australian Made White PLA from @Imaginables3D @210Deg/C
Print speed: 50mm/s - Top/Bottom Speed 20mm/s - Travel Speed 120mm/s - Initial Layer Speed 20mm/s
In-Fill Density : 20% - In-Fill Pattern : Grid - Layer Height: 0.1mm
Print Time: 18 minutes per Tile
Please remember material shrinkage will vary depending on material, brand and colour.
If you like any of my designs please show your support by sharing them with your followers on Twitter #3dprinting and upload pictures of your prints. Happy printing.
D3V!rum3tM^ch!n^ @DVirumEtMachina
15 January 2017
