Reusable mold for silicone boot for Wanhao D6 hotend
Free

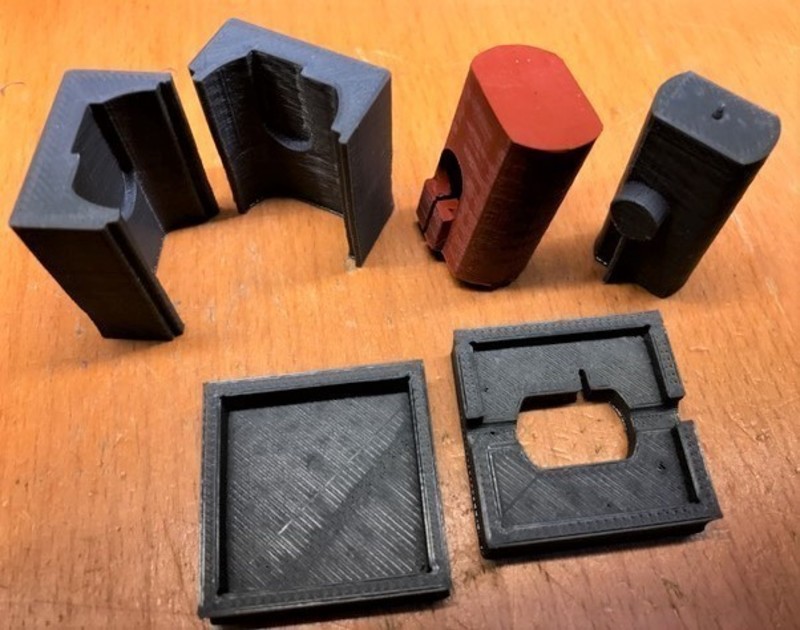

Summary Here is a reusable mold for a silicone boot for the Wanhao D6/ Monoprice Ultimate printers thanks to the original files by 1bigpig. It can easily be assembled and taken apart. Also increased the size of the cutouts for hot end and nozzle. Sanding improves fit and the look of the cast. I use Mold Max 60 from Smooth-on made for pewter casting and stable up to 294C. Also use their Universal mold release. I mostly print PETG up to 240C. There is some H2O and ETOH evaporation (from the curing process) when you first heat these up, but no signs of degradation or smells since posting this albeit nonstop printing.

Loading comments...

Loading prints...

Reusable mold for silicone boot for Wanhao D6 hotend

like
1 collection
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

5 downloadable files:

View 3D
Body1.stl
STL Model
74.9 KB
File size
View 3D
Body2.stl
STL Model
43.2 KB
File size
View 3D
Body5.stl
STL Model
171.5 KB
File size
View 3D
Body3.stl
STL Model
41.1 KB
File size
View 3D
Body4.stl
STL Model
101.1 KB
File size
