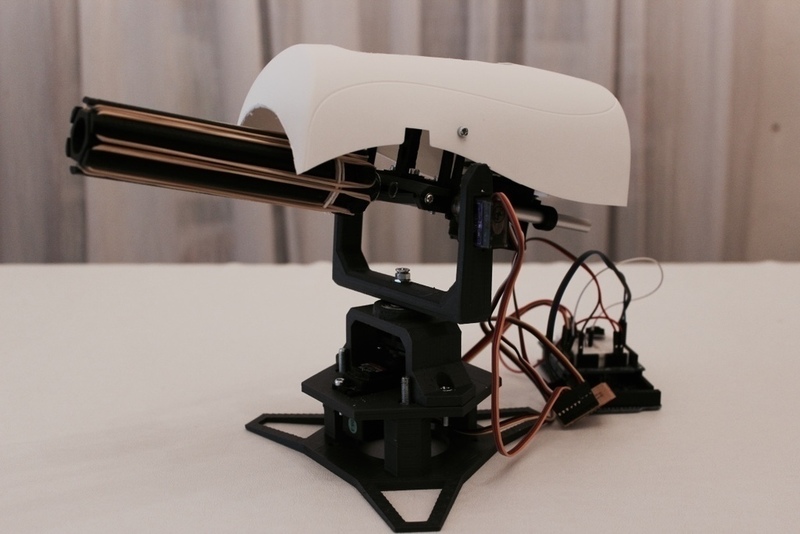

Summary Full-auto sentry gun, shoots rubber bands. Youtube:
For the software, follow the guide: http://projectsentrygun.rudolp...material:
mechanical parts:
-3 M5 50mm screws
-2 M4 30mm screws
-1 M4 40mm screw
-12 M3 16mm imbus
-3 M3 10mm
-15 M3 nuts
-3 M5 nuts
-6 M4 nuts
-3 M6 nuts
-10 servo screws
-1 M6 80mm threaded bar
-1 skateboard ball bearing
-1 30 cm piece of string
-2 135 mm x 8mm ⌀ metal pipe
-1 35 mm x 8mm ⌀ metal pipe
electronic parts:
-1 180° micro servo
-1 180° servo
-1 360° servo
-1 arduino UNO, 2009 or Mega
optional (for manual cotrol):
-1 joystick
-1 button
Printing settings (BQ Witbox):
200 micron
60 mm/s
supports everywhere
Loading prints...
Rubber bands sentry gun
Creative Commons Attribution
You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.
Licensed under CC BY
Files Included
13 downloadable files:
Downloaded: 156 times
