Arcade Button - functional!
Free

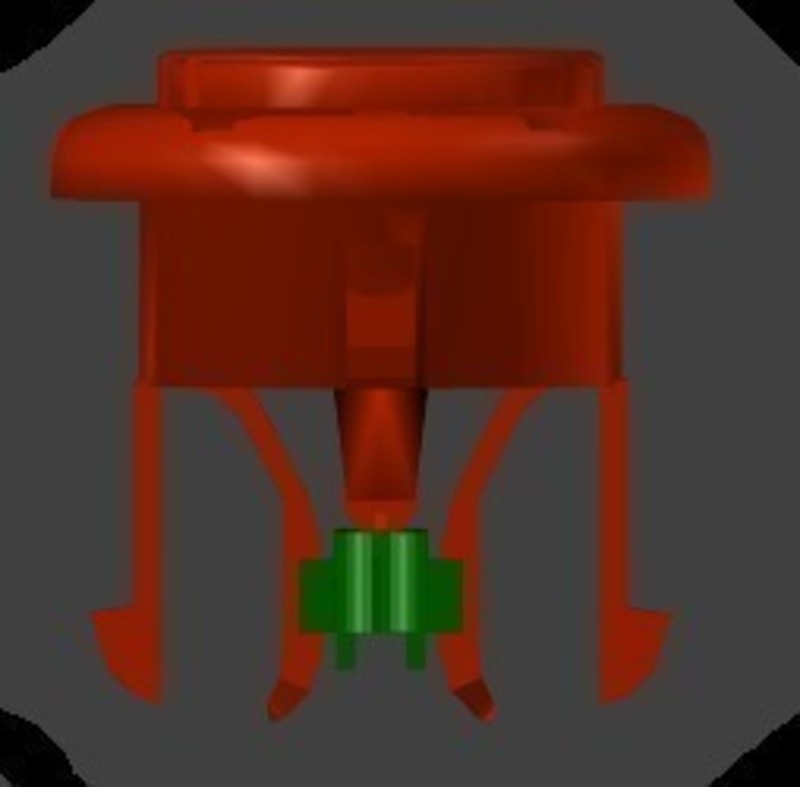

Summary Print own arcade button! The button works by pressing a standard tactile button (easily salvaged for free) held in its clutches! This is EXPERIMENTAL and I have not yet attempted a print. Also, this is my first model, so odds are great of something being weird. Regardless, I'm going to be out next week, so I thought I'd upload for people to mess with. The current models are intended to fit a 1" hole in 3/4" plywood. I've also added the feature of being able to mount a 5mm LED for lighted buttons. :) There is a more standard-looking version, and also what I call the "miniskirt" version which may be more printable and use less plastic. UPDATE Nov, 2015: I am presently redoing this as in OpenSCAD customizable object. Instructions Your guess is as good as (or probably better than) mine. This is for 3/4" plywood and intended to fit tactile buttons which I had the most of, but I've also included the blender files if you need to modify it.

Loading comments...

Loading prints...

Arcade Button - functional!

like
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

2 downloadable files:

View 3D
arcade-housing_original.stl
STL Model
58.9 KB
File size
View 3D
arcade-key_original.stl
STL Model
150.1 KB
File size
Free download - login required
Downloaded: 46 times
