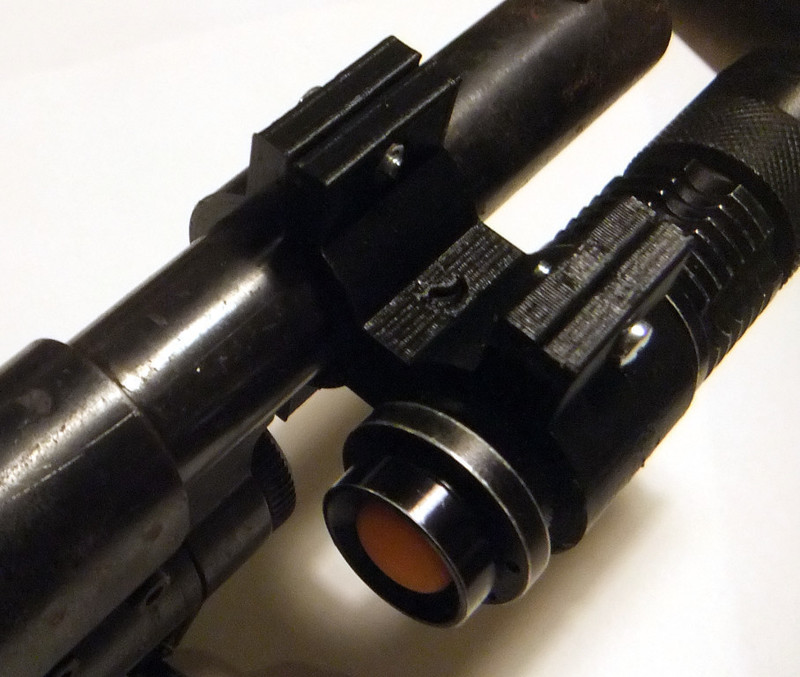

This basic, simple double clamp is designed to mount an AMAsky flashlight to a Mossberg Maverick Model 88 12 gauge shotgun. The flashlight diameter is 21mm and the barrel of the shotgun is 22.5mm. Any shotgun or flashlight with those measurement should work. You will need four m3-0.50x12 machine screws and four m3-0.50 hex nuts to bolt the clamp together. There are registration marks on the two clamps that match those on the center piece due to the ever so slight difference in sizes between the two sets.
Print Settings
Supports: No
Resolution: 0.2
Infill: at least 60% for strength
