Ultibots Kossel V-slot magball roller carriage with tension adju
Free

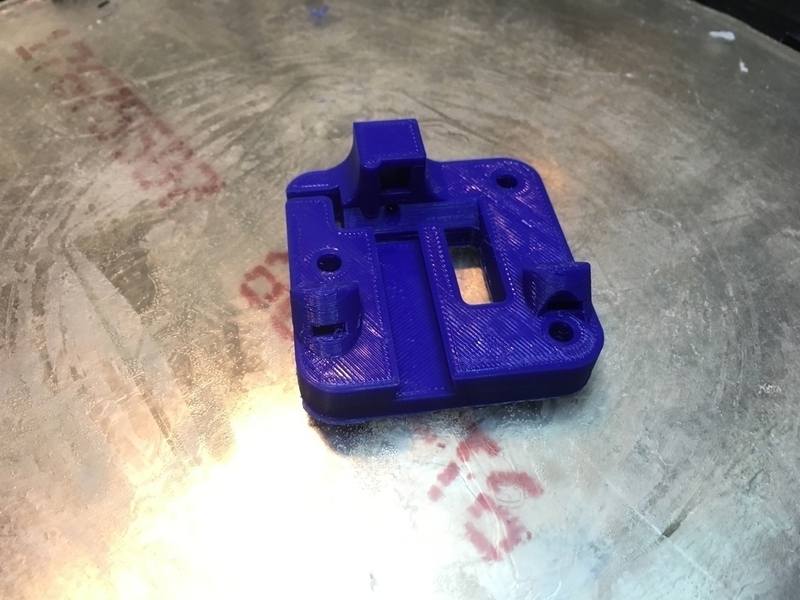

Summary This is a tension-adjustable V-Slot magball carriage (42mm spacing) derived from the Ultibots experimental carriage for the D300VS, by Brad Norman found at: https://github.com/UltiBots/D300VS/blob/master/Experimental/d300_carriage_v2.stl Remix is to allow re-use of original hardware (with one additional m3x20 or m3x30 screw/bolt and 1 m3 hex nut), while allowing for an expanded range of tensioning. Also, there is a reinforcement made on the bottom belt clamp to make it easier to use a pair of needle-nose pliers to pre-tension the belts before final adjustment. I am considering one or two other small modifications to the clamping area, but they won't significantly change the existing model. Print Settings Printer: D300VS Rafts: No Supports: Yes Resolution: .2mm Infill: 20% Triangles Notes: I printed this in PLA, and it works fine, but it would have been better to use something lighter/more flexible. ABS, PETG, or Nylon would have been a smarter choice.

Loading comments...

Loading prints...

Ultibots Kossel V-slot magball roller carriage with tension adju

like
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

1 downloadable file:

View 3D
carriage_b.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 26 times
