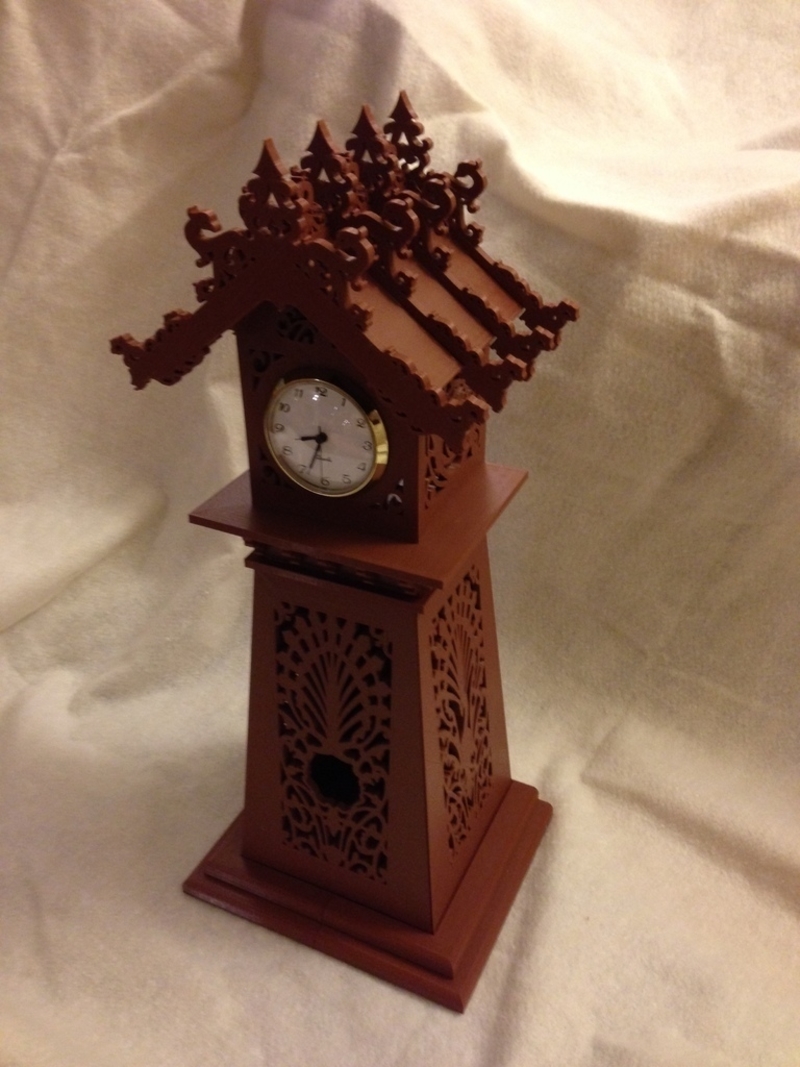

Dragon Clock
Free
Summary I used to scrollsaw clocks for wedding gifts. For my sister-in-law I decided to 3D print one instead. http://youtu.be/dD738sTenak Instructions The stl files are quite a bit smaller than I printed, I scaled all of them up 330% (largest I could do on my Replicator 2). At this size I used a 2 3/4 inch clock insert. If you scale a significantly different percent you will need a different clock size. Most of the pieces are printed once with the exception of some of the brackets. I printed in PLA since the pieces needed to fit together accurately. I used makerware to slice since the raft helped prevent these large flat pieces from lifting while having an easy raft to remove. Since the details are all on the top it is fine to print at a low resolution, I did 0.34mm. Tramming is very important on the big pieces! They cannot warp or they won't fit together. On the bases I used Sugru to get them to stick together, I used standard school white glue for the rest. Based on this pattern from Wildwood designs, where you can also purchase clock inserts. http://www.wildwooddesigns.com/Dragon-Clock-Plan-P1249.aspx

Loading comments...

Loading prints...

Dragon Clock

likes
3 collections
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

22 downloadable files:

View 3D
06L1BackPanelblend.stl
STL Model
684 B
File size
View 3D
BaseLowerRight.stl
STL Model
37.2 KB
File size
View 3D
BaseUpperLeft.stl
STL Model
39.9 KB
File size
View 3D
BaseSecondFloor.stl
STL Model
4.2 KB
File size
View 3D
BaseThirdFloor.stl
STL Model
1.7 KB
File size
View 3D
BaseLowerLeft.stl
STL Model
36.7 KB
File size
View 3D
04L1RightPanelblend.stl
STL Model
1.6 MB
File size
View 3D
BaseUpperRight.stl
STL Model
40.4 KB
File size
View 3D
L3BackPanel.stl
STL Model
196.6 KB
File size
View 3D
05L1FrontPanelblend.stl
STL Model
1.4 MB
File size
View 3D
L3FrontGableM3.stl
STL Model
4.3 MB
File size
View 3D
L3LeftPanel.stl
STL Model
1.9 MB
File size
View 3D
L3LeftPanel2.stl
STL Model
2.0 MB
File size
View 3D
L3RightPanel.stl
STL Model
2.2 MB
File size
View 3D
roof.stl
STL Model
1.9 KB
File size
View 3D
L3FrontPanel.stl
STL Model
657.0 KB
File size
View 3D
SidesSecondFloor.stl
STL Model
7.8 KB
File size
View 3D
L2Bracket.stl
STL Model
1.0 MB
File size
View 3D
TopBracket2.stl
STL Model
462.2 KB
File size
View 3D
L3RightPanel2.stl
STL Model
2.2 MB
File size
View 3D
03L1LeftPanelblend.stl
STL Model
3.7 MB
File size
View 3D
L3BackGableM3.stl
STL Model
3.8 MB
File size
