TwixT Game Full Size
Free

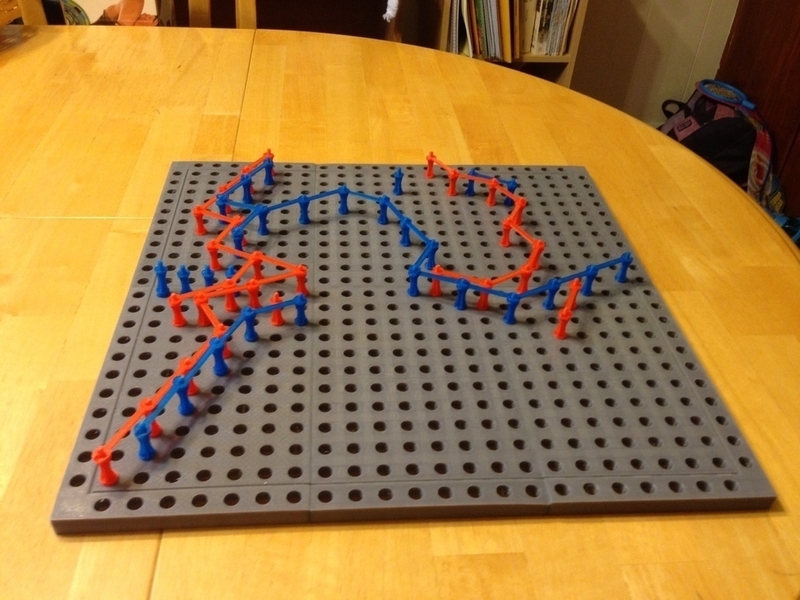

Summary A favorite game of mine growing up, instructions on how to play can be found here. Assembled board measures 16"x16"x1/2" (40.6cm x 40.6cm x 1.3cm). Instructions Print 2 of each table piece, 50 playing pieces and bridges in each color you want, and 7 clips. Use the clips in the slots on the bottom to keep the board together. I printed the table pieces at .34mm. Since only the top is seen the layer resolution is not that important for visual appeal and it helps prevent warping and prints faster. At 80mm/s it still took 5 hours for each table piece to print. It also take a very well trammed table and some trial and error. I did not use a raft or ear pieces. For the rest of the pieces I did at .2mm (and 80mm/s). I printed the pawn like pieces on a raft, this kept the bottom of the pieces from flaring out and making it more difficult to fit in the holes. For the bridge pieces I did not use a raft. I would not recommend printing the bridge pieces unattended, if they warp they will pop off and cause all sorts of havoc on your print bed. The clips I also didn't print on a raft. I would recommend printing out the sample table, a few pieces and bridges in the color you are going to print them for testing purposes before you go full size. Adjustments to the table hole size may be needed for the pieces to fit. This was printed on a Replicator 2, glass plate, Aquanet hairspray.

Loading comments...

Loading prints...

TwixT Game Full Size

likes
1 collection
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

10 downloadable files:

View 3D
TwixtClip.stl
STL Model
5.2 KB
File size
View 3D
TwixtBridge.stl
STL Model
46.5 KB
File size
View 3D
TwixtClip7.stl
STL Model
75.6 KB
File size
View 3D
TwixtTableSample.stl
STL Model
382.7 KB
File size
View 3D
TwixtPiece.stl
STL Model
176.6 KB
File size
View 3D
TwixtBridge25.stl
STL Model
1.8 MB
File size
View 3D
TwixtTableTR_BL.stl
STL Model
4.7 MB
File size
View 3D
TwixtTableM.stl
STL Model
4.7 MB
File size
View 3D
TwixtTableTL_BR.stl
STL Model
4.7 MB
File size
View 3D
TwixtPiece50.stl
STL Model
8.1 MB
File size
