Jumpin Game
Free

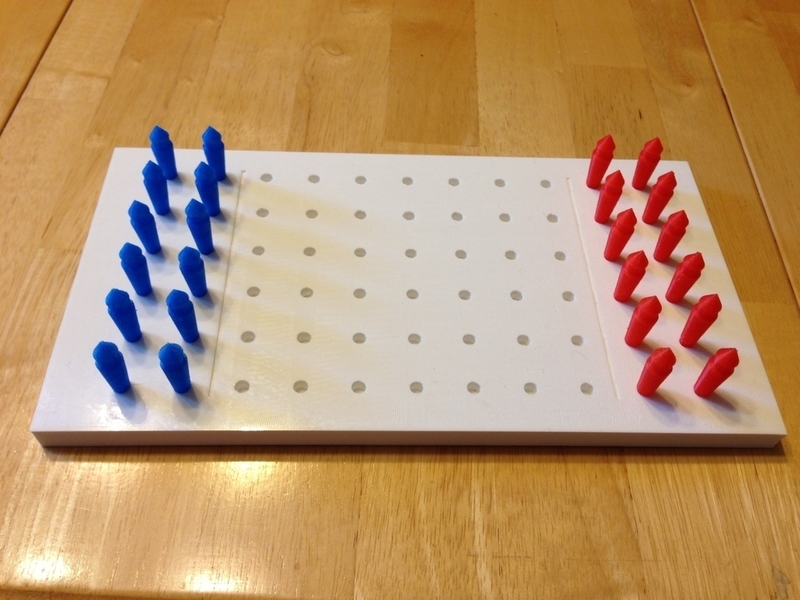

Summary Another in the 3M bookshelf games series, a pawn jumping game. The board is nearly the max printable area of the Replicator 2. Instructions I printed the board in one piece, glass plate with hairspray, .34mm thickness. This requires perfect tramming of the build plate. It took me several times to get it so that the ends didn't warp. If I were to do it again I think I would have used a raft. I included the stl for both the single piece and all the pieces for one color. A raft is nearly required since very little of the piece is attached to the build plate. Also I would highly recomment not printing one piece at the time, that doesn't allow enough time for each layer to cool and the top becomes a melted mess. I did mine at .2 mm resolution.

Loading comments...

Loading prints...

Jumpin Game

likes
2 collections
Creative Commons Attribution-NonCommercial-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format for noncommercial purposes only, with attribution and under the same license.

CC BY-NC-SA Licensed under CC BY-NC-SA
Files Included

3 downloadable files:

View 3D
JumpinBoard.stl
STL Model
3.2 MB
File size
View 3D
JumpinPiece.stl
STL Model
167.2 KB
File size
View 3D
JumpinPiece12.stl
STL Model
1.9 MB
File size
