Summary
Made to mix air to water, this valve is a part of a work-in-progress hydroponic system(picture #6) almost finished. Stay tuned for IT ;)
In a spirit of recycling, the IN and OUT are made to be used with a piece of
common Machine washing drain pipe (picture #7) 20mm IN for 25mm out.
The air intake is 13mm IN for 20mm OUT.
I generated supports with MeshMixer : venturi03MeshMix.stl (picture#3)
Without supports file : venturi03.stl
Optimized to be printable on a 180 mm max axis 3D printer(total length is 178 mm.
i intend to print with the parameters you see on picture #5 but I need a UPS for my Prusa i3 P802MA.
What do you think ? What would you change in theses settings ?
I have joined the inventor part file so you can edit freely.
If you like my work you are more than welcome to support me ;) https://www.patreon.com/myke974
Loading prints...

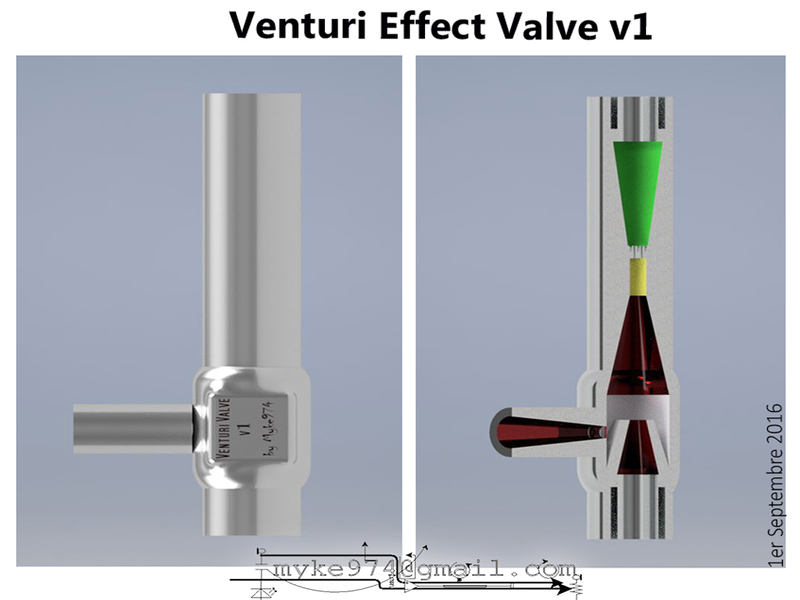

Venturi Effect Valve v1
