Block On Bed v3
Free

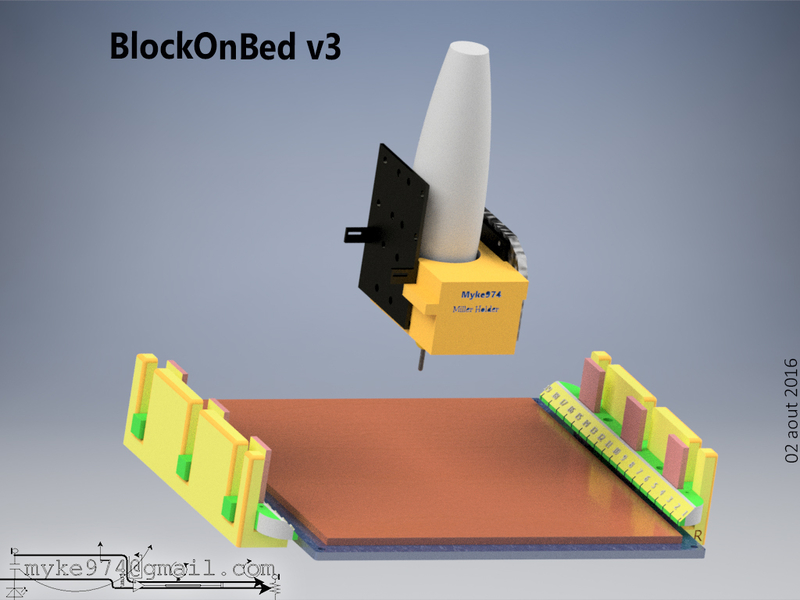

Summary My project is to allow the base Prusa i3 to be multi tools with minimum modifications and optimized printables components. Originally designed for the Prusa i3 P802M/MA... 4mm thick 3D Printers's bed but, can fit on others too ! To be able to restrain a material on the printer bed, we need a fixation system. The challenge with Prusa i3 3D printer is that there isn't a lot of space around the moving bed to fit any system. So, if one wants to use his printer as a CNC plotter, miller, a laser engraver or just to extrude filament on another material and/or with more height on the bed, you will need stable, thight and precise fixation. BlockOnBed is born ! Optimized to be printable in 20 cm 20 cm 20 cm area. Designed to be just outside the 20 cm 20 cm 20 cm so there is no lost of print/work surface. Ruler in centimeter at bed level. The fixations are composed with 2 pieces : 1 still and 1 mobile inserted in the guides above the new material lying on the printer bed. Then theses 2 pieces are secured tight with a set of screw and nuts (5mm or/and 3mm). If you like my work and want to support me, you can be my patreon ;) https://www.patreon.com/myke974 Print Settings Notes: I didn't print it yet. Please let me know/see if you do it. ;)

Loading comments...

Loading prints...

Block On Bed v3

like
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

4 downloadable files:

View 3D
calle_up_L02.stl
STL Model
675.7 KB
File size
View 3D
calle_fixe_L02.stl
STL Model
188.6 KB
File size
View 3D
calle_up_R02.stl
STL Model
593.5 KB
File size
View 3D
calle_fixe_R02.stl
STL Model
659.5 KB
File size
