Summary

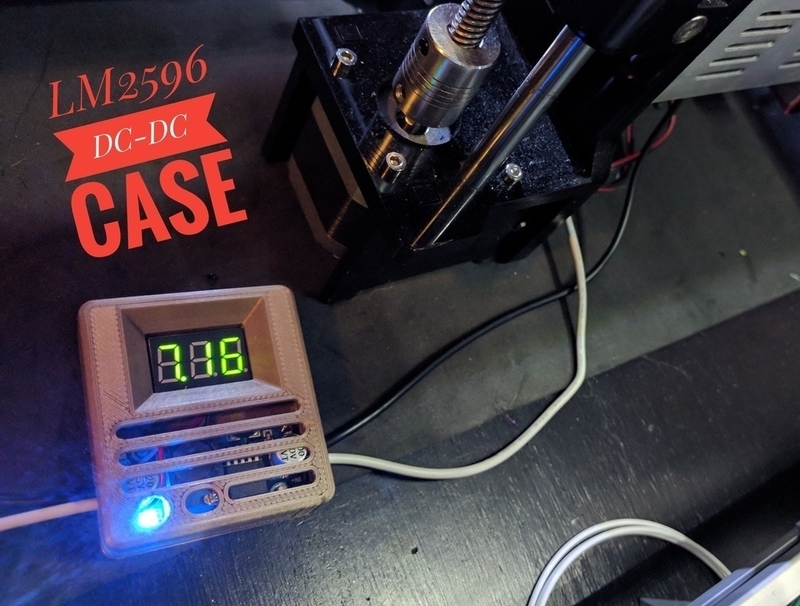

This case houses a LM2596 DC-DC converter. Also a digital voltmeter to make adjustments much easier. Case is held together with two M3x10 screws from the back, self tapping into the front case.
LM2596
https://www.amazon.com/gp/product/B01GJ0SC2C/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1
eBay DC Digital Voltmeters
http://www.ebay.com/itm/5pcs-Mini-DC-0-32V-Red-LED-3-Digital-Display-Voltage-Voltmeter-Panel-Motorcycle-/311773153967?hash=item489720caaf
Print Settings
Printer:
Hypercube Rafts:
No Supports:
Yes Resolution:
0.20 mm Infill:
10% Notes:
Support only needed on the two screw areas.
Loading prints...
LM2596 DC-DC with Digital Volmeter Case
2
likes
1
collection
Tags:
Creative Commons Attribution
You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.
Licensed under CC BY
Files Included
1 downloadable file:
Free download - login required
Downloaded: 28 times
