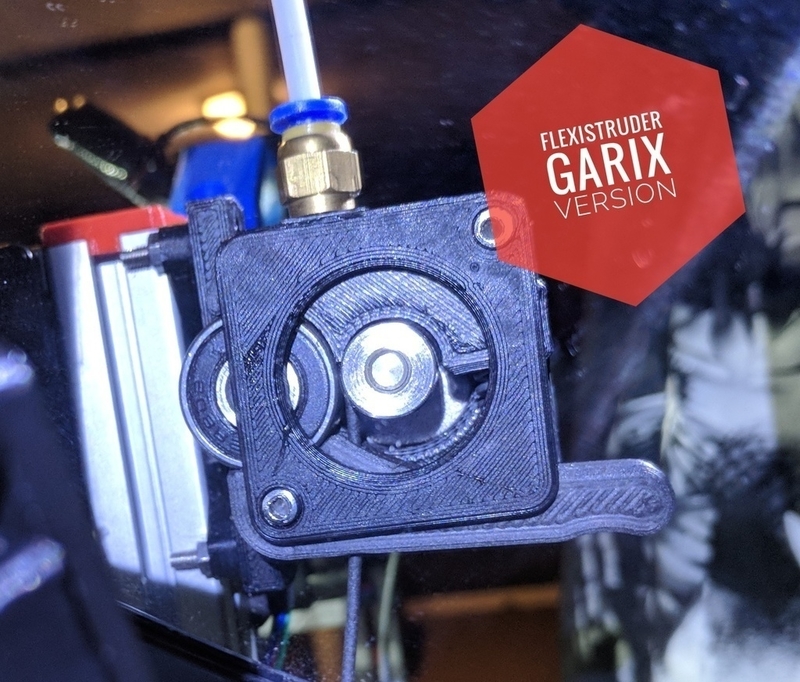

FlexiStruder - GARIX version for Mk7 drive gear
Free
Summary After trying many extruders i always end up coming back to the Flexistruder for reliability, quick filament change and simple design. Recently i started to get some under extrusion. I noticed that my spring was never really straight and im sure some pressure was being lost, since i seem to have plenty torque on the drive gear, it just wouldn't bite well on certain filaments and would slip. So, i decided to fix the issue with the spring not being straight with a new lever. I redid the lever to align the spring with the body and keep spring tension straight. I also made it fit locally available springs like Menards (PN#88250). It also compresses the spring more for extra tension. I also added a top to the design, which helps keep the lever/bearing straight against the drive gear with the added tension using M3x25mm screws. Included is a regular and reversed version. For further details, setup etc, see the original thing. Hope this is helpful for some. Print Settings Printer: HyperCube Rafts: No Supports: No Resolution: 0.20 Infill: 100% Notes: Printed on Proto Pasta Carbon Fiber Filament with 0.6mm Nozzle at 100% infill.

Loading comments...

Loading prints...

FlexiStruder - GARIX version for Mk7 drive gear

like
0 collections
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

6 downloadable files:

View 3D
Flexistruder_cover.stl
STL Model
~1-5 MB
File size
View 3D
Flexistruder_cover_flipped.stl
STL Model
~1-5 MB
File size
View 3D
Flexistruder_base.stl
STL Model
~1-5 MB
File size
View 3D
Flexistruder_base_flipped.stl
STL Model
~1-5 MB
File size
View 3D
Flexistruder_lever.stl
STL Model
~1-5 MB
File size
View 3D
Flexistruder_lever_flipped.stl
STL Model
~1-5 MB
File size
