Fine Ajustment Z Endstop for Anet A6
Free

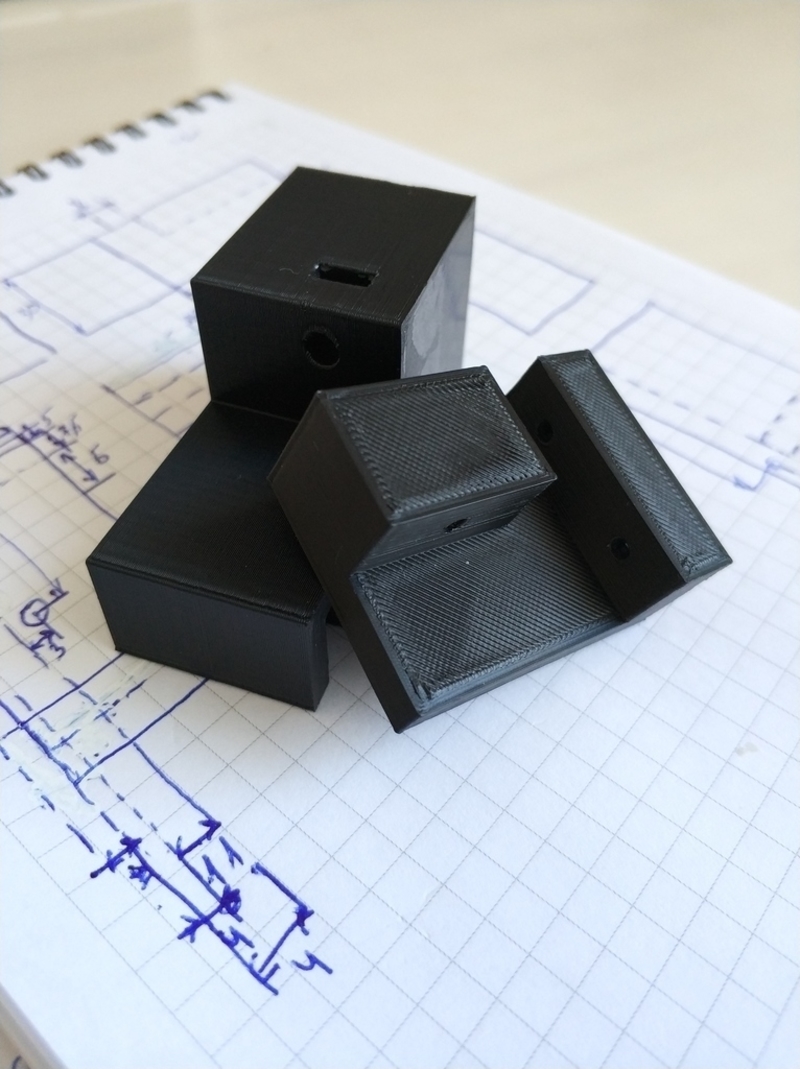

Summary Alternative attachment for Z endstop for my printer Anet A6. I decided to do it when I started to change different nozzles, and they differ slightly from different suppliers visually, and therefore in height. And I had to adjust every time hotbed under each nozzle. With this mount, you can very accurately adjust the position of the Z-axis, adjusting to different nozzles or if you like to print something on the glass, then on a regular table. Even after installing the glass you will have to invent something. For installation, a bit of additional hardware is required: 1 bolt m4 * 70-75mm 2 m4 nuts (one in order to fix the bolt, one to insert into the fasteners) 2-3 additional self-tapping m2 * 12 (I had an extra for my Anet A6) Print Settings Printer: Anet A6 Rafts: Doesn't Matter Supports: Doesn't Matter Resolution: 0.2 Infill: 30% Notes: I print with Abs, but i think you may use PLA too.

Loading comments...

Loading prints...

Fine Ajustment Z Endstop for Anet A6

likes
1 collection
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

3 downloadable files:

View 3D
Anet_A6_Z_endstop_2.1.STL
STL Model
36.8 KB
File size
View 3D
Anet_A6_Z_endstop_3.1.STL
STL Model
101.9 KB
File size
View 3D
Anet_A6_Z_endstop_1.1.STL
STL Model
72.3 KB
File size
