Washer for Gear Bearing
Free

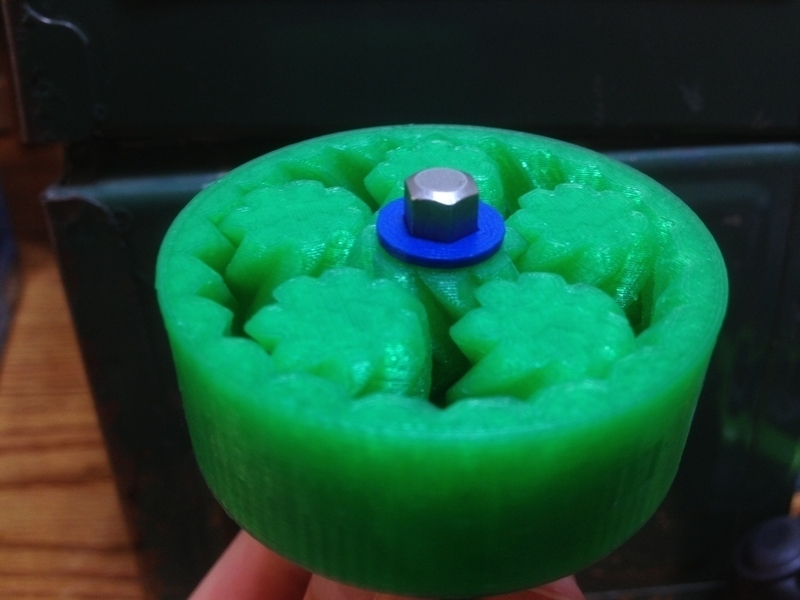

Summary This washer fits between one of Emmett's Gear Bearings and a power-drill chuck, ensuring that the planetary gears avoid unnecessary collisions. While not critical, this primarily helps keep the gear's surface looking nice, and secondarily avoids the generation of PLA-dust. Instructions Print out a washer (1-2 minutes!), and stick it between the chuck and gear as pictured. Enjoy! P.S. This is yet another simple OpenSCAD STL-butchering, as the washer was generating in extremely little time by intersecting the entire bearing STL with a small cylinder. Even though the implementation is dirty, it worked extremely well to generate the needed geometry. :)

Loading comments...

Loading prints...

Washer for Gear Bearing

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

1 downloadable file:

View 3D
washer.stl
STL Model
16.3 KB
File size
Free download - login required
Downloaded: 36 times
