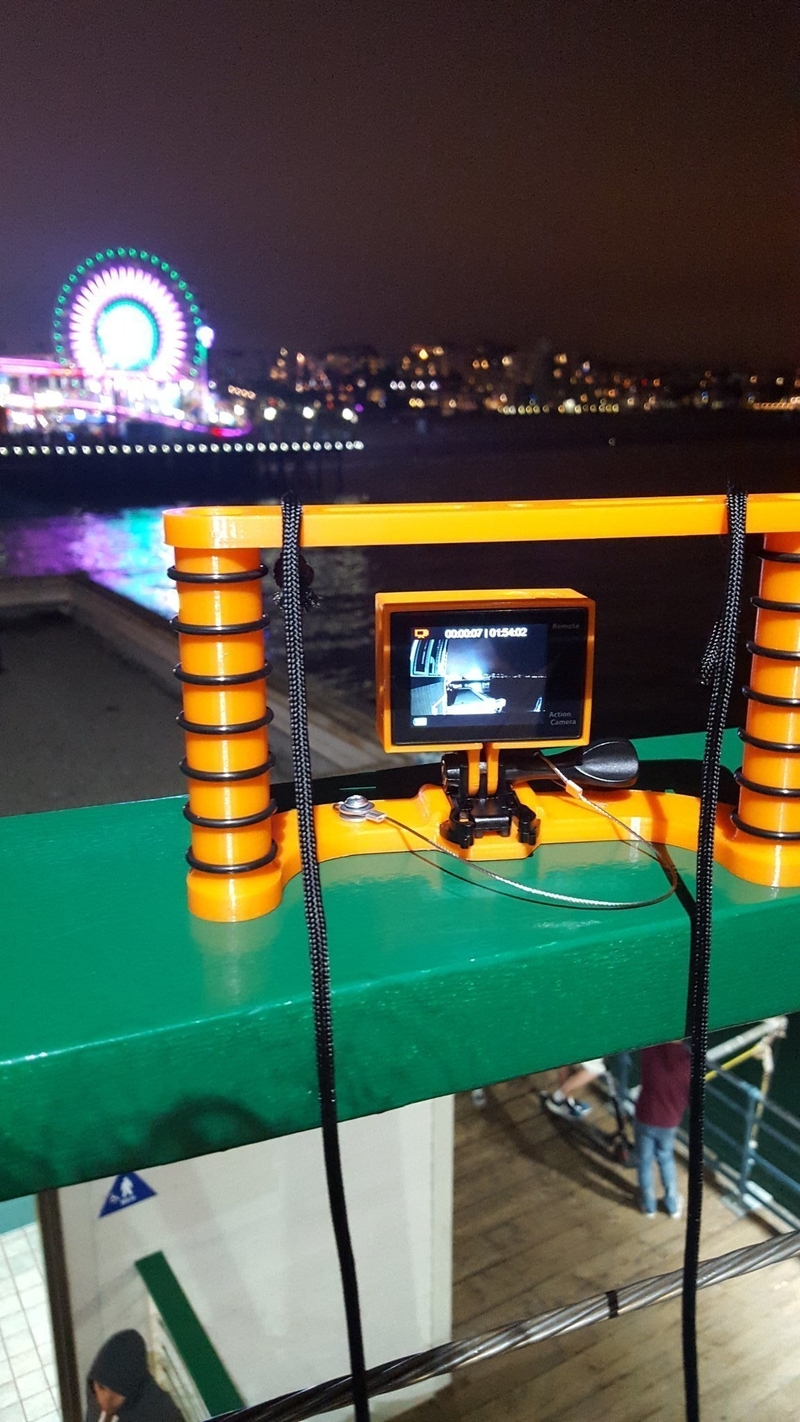

This camera rig is an improved version of the mini GoPro rig. Version shown was made in PLA but I would recommend using a higher temperature resistant material such as PETG, Ngen, PCTG, etc if your rig will be sitting in a hot environment for an extended period of time. Also it is common for the threads to print tight so be careful when threading the hardware in for the first time. If you have access to an 8-32 and 1/4-20 tap use these to carefully cut the threads. If this is not available you can carefully warm up the hardware with soldering iron and screw it in.
Check it out in action here:
Figure out what style to print with this test print:
https://pinshape.com/items/441...
Improvements made include:
Adding threads to the upper handles so you can use standard hardware
The base slot has been modified for GoPro clones (do note these are shorter vertically than GoPro mounts, some sanding maybe required to fit yours)
Has threads for 8-32 hardware to hold a safety line for the camera
Top slot has two holes in the top for a neck strap, as well as slots for accessory mounts.
External hardware required:
1/4-20 x 1" flat head screws (2)
115 size O rings (14) (https://www.mcmaster.com/#9452... ones I use)
Paracord or other material for neck strap (completely optional)
Etsy Hardware pack link:
Loading prints...
Mini Action Camera Rig V2 Clone Slot
Creative Commons Attribution-NoDerivatives
You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.
Licensed under CC BY-ND
