Action Camera Tripod Revamp
Free

This is a revamp of my original GoPro tripod with a few key features:  Thicker walls on the tripod legs, I went to 2MM to allow for stronger prints.

Made the feet part of the print.

Added a cutout layer on the underside for the bolt hole to allow for easier printing

Added a safety tether attachment to the cover

Added a spin function to the top camera mount

Also, included a 1/4-20 and M6 screw thread on the top camera mount depending on what hardware is easiest available.

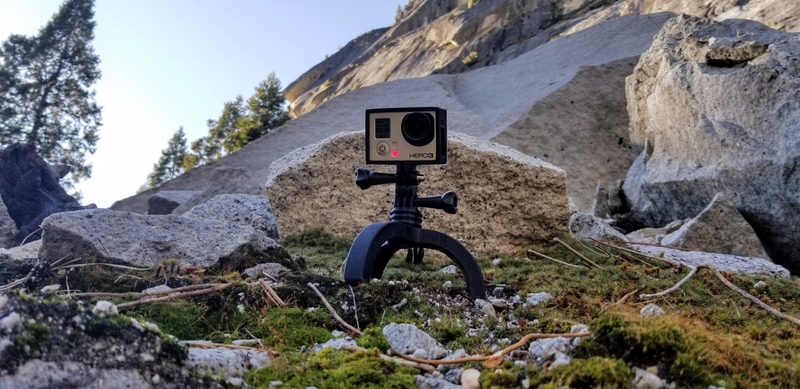

I found this tripod very useful for various situations and it came in extremely handy on a trip to Yosemite with friends. The tripod shown was printed in Taulman 910 nylon for an extremely durable print that withstood lots of abuse. I filled the inside with steel shot to increase the weight and improve the stability. 1/4" elastic was used for the safety strap.

Loading comments...

Loading prints...

Action Camera Tripod Revamp

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

5 downloadable files:

View 3D
tripod_lid.stl
STL Model
96.4 KB
File size
View 3D
tripod_main_body.stl
STL Model
1.6 MB
File size
View 3D
tripod_spin_top_inch.stl
STL Model
2.5 MB
File size
View 3D
tripod_spin_top_metric.stl
STL Model
2.6 MB
File size
View 3D
fill_funnel.stl
STL Model
221.8 KB
File size
