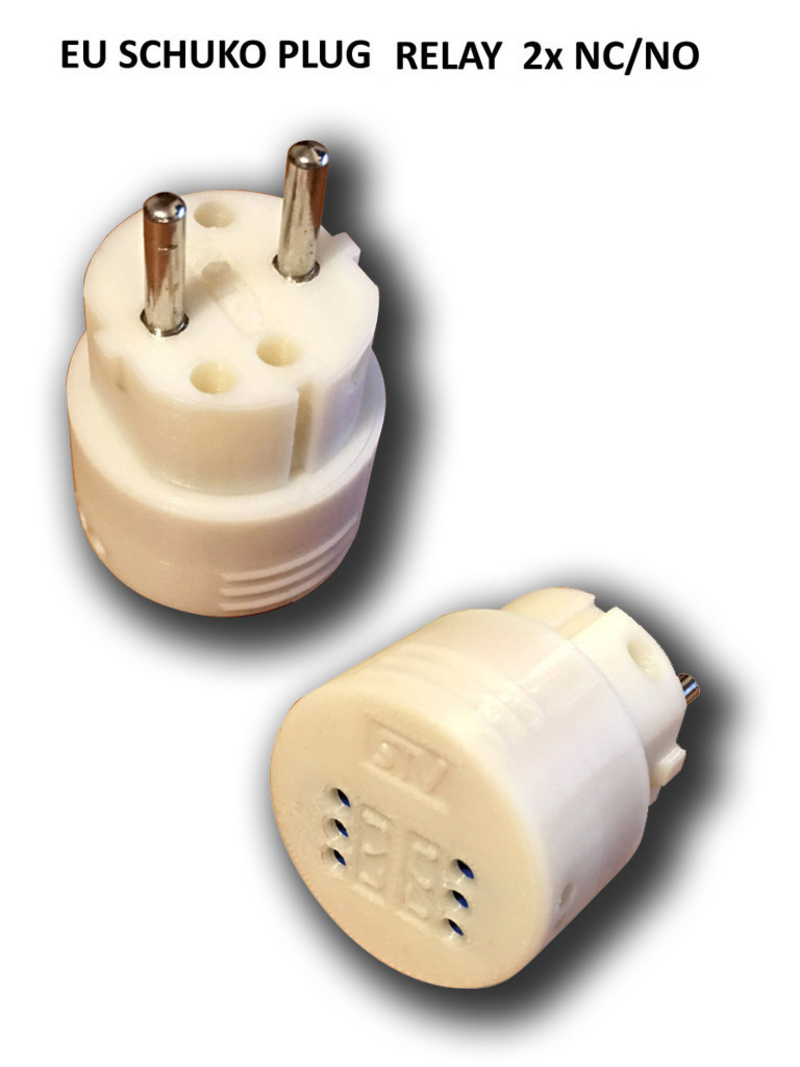

SCHUKO EU Mains Plug with 2 Independent Auxiliary Contacts NC-COM-NO (relay)
ALL FILES HERE: https://www.redpah.com/product/4259 (with a small contribution)
Module can be used on controlled sockets (eg. domotic modules) to open or close electric contacts.
Simple additional items:
- 1x 30061B Poliplast Eletta Schuko White 90° Mains Plug (https://www.ebay.it/itm/162445640320)
- 1x RT424730 Relay electromagnetic DPDT 8A/250VAC (https://www.ebay.it/itm/221884524443)
- 2x 3 Pin 5.08mm Pitch PCB Mount Screw Terminal Block (https://www.amazon.it/gp/product/B00SWONXEQ)
All filaments are insulating but I recommend to print with fireproof material.
