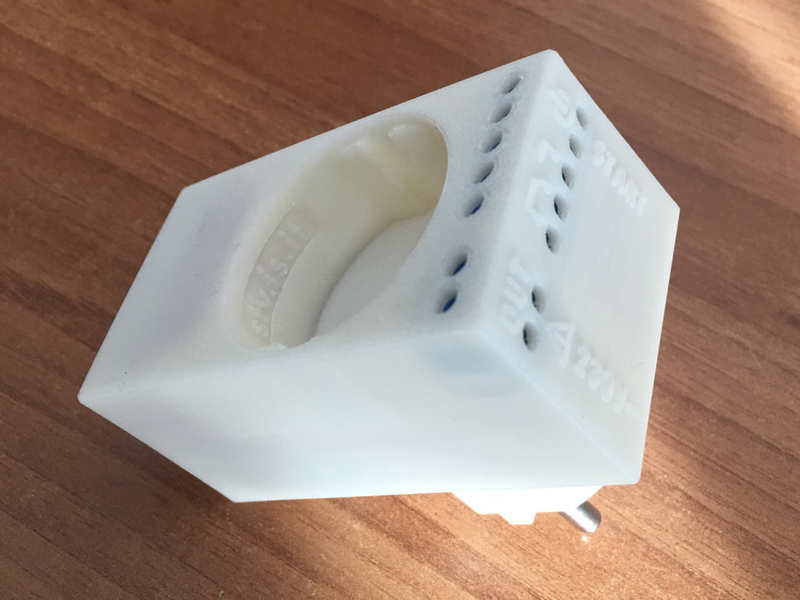

Schuko EU 230v, controlled timed output + relay (pass thru)
ALL FILES HERE: https://www.redpah.com/product/4272
For make an Alarm Unit with 2 EU ON/OFF domotic module (like Insteon) (see VIDEO and DESCRIPTION in youtube site https://youtu.be/W4h5WVAYrQA)
ITEMS FOR BUILD A: 1x Bticino S2676TAE Schuko Socket (https://www.amazon.it/gp/product/B00HYUVG9S) B: 1x 30061B Poliplast Eletta Schuko White 90° Mains Plug (https://www.ebay.it/itm/162445640320) C: 1x RT424730 Relay electromagnetic DPDT 8A/250VAC (https://www.ebay.it/itm/221884524443) D: 1x Finder 86.30.8.240.0000 Module Timer bifuncion 240 VAC/DC (https://www.amazon.it/gp/product/B0028YQW62) E: 2x 2 Pin 5.08mm Pitch PCB Mount Screw Terminal Block (https://www.amazon.it/gp/product/B00SWONOMW) F: 1x 3 Pin 5.08mm Pitch PCB Mount Screw Terminal Block (https://www.amazon.it/gp/product/B00SWONXEQ)
All filaments are insulating but I recommend to print with fireproof material.
