1.Specifications: Spur gear with pinion· Z 46 module 0,5· Shaft passage diameter: 2,55 mm· External diameter: 24 mm· Pinion: Z 9 module 0,6· External diameter of 7,05 mm·
2.Specifications:Spur gear with pinion· Z 39 module 0,6· Shaft passage diameter: 2,55 mm· External diameter: 24,30 mm· Pinion: Z 11 module 1· External diameter of 13,75 mm·
3.Specifications:Spur gear with pinion· Gear: Z 37 module 0.5· Shaft passage diameter: 2.05 mm· External diameter: 19.30 mm· Pinion: Z 10 module 0.5· External diameter: 5.95 mm·
4.Specifications:Spur gear with pinion· Gear: Z 37 module 0.5· Shaft passage diameter: 2.05 mm· External diameter: 19.30 mm· Pinion: Z 9 module 0.6· External diamete: 6.60 mm·
5.Specifications:Spur gear with pinion· Gear: Z48 module 0.5· Shaft passage diameter: 2.55 mm· External diameter of gear: 24.90 mm· Pinion: Z 8 module 0.75· External diameter of pinion: 7,95 mm·
6.Specifications:Spur gear with pinion· Gear: Z30 module 0.75· Shaft passage diameter: 2.55 mm· External diameter of gear: 23.95 mm· Pinion: Z8 module 0.75· External diameter of pinion: 7.95 mm·
7.Specifications:Spur gear with pinion· Z 30 module 0,75· Shaft passage diameter: 2,55 mm· External diameter: 23,95 mm· Pinion: Z 11 module 1· External diameter of 13,75 mm·
8.Specifications:Helicoidal gear with pinion· Gear: Z38 module 0.5· Shaft passage diameter: 2.05 mm· External diameter of gear: 20.00 mm· Pinion: Z10 module 0.5· External diameter of pinion: 6.00 mm
9.Specifications:Spur gear with pinion· Gear: Z 31 module 0.5· Shaft passage diameter: 2.05 mm· External diameter of gear: 15.80 mm· Pinion: Z 10 module 0.5· External diameter of pinion: 5.95 mm·
10.Specifications:Spur gear with pinion· Z 46 module 0,5· Shaft passage diameter: 2,55 mm· External diameter: 24 mm· Pinion: Z 9 module 0,75· External diameter of 8,30 mm·
11.Specifications:Spur gear with pinion· Z 29 module 0,75· Shaft passage diameter: 2,55 mm· External diameter: 23,40 mm· Pinion: Z 8 module 0,75· External diameter of 7,70 mm·
12.Specifications:Spur gear with pinion· Gear: Z 56 module 0.5· Shaft passage diameter: 2.55 mm· External diameter of gear: 29 mm· Pinion: Z 9 module 0.6· External diameter of pinon: 7.30 mm·
13.Specifications:Spur gear with pinion· Z 48 module 0,5· Shaft passage diameter: 2,55 mm· External diameter: 24,90 mm· Pinion: Z 10 module 0,5· External diameter of 6 mm·
14.Specifications:Spur gear with pinion· Gear: Z 45 module 0,5· Shaft passage diameter: 2,55 mm· External diameter of gear: 28,30 mm· Pinion: Z8 module 0,75· External diameter of pinion: 7,95 mm·
15.Specifications:Spur gear with pinion· Gear: Z48 module 0.5· Shaft passage diameter: 2,55 mm· External diameter of gear: 24,90 mm· Pinion: Z10 módulo 0,6· External diameter of pinion: 7,20 mm·
16.Specifications:Spur gear with pinion· Z 48 module 0,5· Shaft passage diameter: 2,55 mm· External diameter: 24,90 mm· Pinion: Z 9 module 0,6· External diameter of 7,05 mm·
17.Specifications:Spur gear with pinion· Gear: Z 30 module 0.6· Shaft passage diameter: 2.05 mm· External diameter of gear: 19.20 mm· Pinion: Z 9 module 0.6· External diameter of pinion: 6.60 mm·
18.Specifications:Spur gear with pinion· Z 48 module 0,5· Shaft passage diameter: 2,55 mm· External diameter: 24,90 mm· Pinion: Z 9 module 0,75· External diameter of 8,30 mm·
19.Specifications:Spur gear with pinion· Z 46 module 0,5· Shaft passage diameter: 2,55 mm· External diameter: 24 mm· Pinion: Z 10 module 0,6· External diameter of 7,20 mm·
20.Specifications:Spur gear with pinion· Z 37 module 0,5· Shaft passage diameter: 2,55 mm· External diameter: 19,50 mm· Pinion: Z 8 module 0,75· External diameter of 7,95 mm·
21.Specifications:Spur gear with pinion· gear: Z 60 module 0.3· Shaft passage diameter: 2.05 mm· External diameter: 18.40 mm· Pinion: Z 14 module 0.4· External diameter: 6.70 mm·
22.Specifications:Spur gear with pinion· Gear: Z 35 module 0.5· Shaft passage diameter: 2.05 mm· External diameter of gear: 18.40 mm· Pinion: Z 8 module 0.5· External diameter of pinion: 5.50 mm·
23.Specifications:Spur gear with pinion· Z 41 module 0,5· Shaft passage diameter: 2,55 mm· External diameter: 21,35 mm· Pinion: Z 13 module 0,6· External diameter of 9,10 mm·
24.Specifications:Spur gear with pinion· Z 35 module 0,6· Shaft passage diameter: 2,55 mm· External diameter: 21,96 mm· Pinion: Z 12 module 0,75· External diameter of 10,88 mm·
25.Specifications:Spur gear with pinion· Z 45 module 0,5· Shaft passage diameter: 2,55 mm· External diameter: 23,05 mm· Pinion: Z 13 module 0,6· External diameter of 9,10 mm·
26.Specifications:Spur gear with pinion· Z 35 module 0,6· Shaft passage diameter: 2,55 mm· External diameter: 21,96 mm· Pinion: Z 10 module 0,75· External diameter of 9,38 mm·
27.Specifications:Spur gear with pinion· Z 47 module 0,5· Shaft passage diameter: 2,55 mm· External diameter: 24,05 mm· Pinion: Z 13 module 0,6· External diameter of 9,10 mm·
28.Specifications:Spur gear with pinion· Z 35 module 0,6· Shaft passage diameter: 2,55 mm· External diameter: 21,96 mm· Pinion: Z 9 module 0,75· External diameter of 8,63 mm·
29.Specifications:Spur gear with pinion· Z 46 module 0,5· Shaft passage diameter: 2,55 mm· External diameter: 23,55 mm· Pinion: Z 12 module 0,5· External diameter of 7,10 mm·
30.Specifications:Spur gear with pinion· Gear: Z 46 module 0.5· Shaft passage diameter: 2.55 mm· External diameter of gear: 23.55 mm· Pinion: Z 10 module 0.6· External diameter of pinion: 7.86 mm·
31.Specifications:Spur gear with pinion· Z 47 module 0,5· Shaft passage diameter: 2,55 mm· External diameter: 24,05 mm· Pinion: Z 11 module 0,5· External diameter of 6,60 mm·
32.Specifications:Spur gear with pinion· Z 47 module 0,5· Shaft passage diameter: 2,55 mm· External diameter: 24,05 mm· Pinion: Z 9 module 0,6· External diameter of 7,08 mm·
33.Specifications:Spur gear with pinion· Z 37 module 0,5· Shaft passage diameter: 2,05 mm· External diameter: 19,10 mm· Pinion: Z 18 module 0,6· External diameter of 12,12 mm·
34.Specifications:Spur gear with pinion· Z 37 module 0,5· Shaft passage diameter: 2,05 mm· External diameter: 19,10 mm· Pinion: Z 16 module 0,6· External diameter of 10,92 mm·
35.Specifications:Spur gear with pinion· Gear: Z 37 module 0.5· Shaft passage diameter: 2.05 mm· External diameter of gear: 19.10 mm· Pinion: Z 12 module 0.6· External diameter of pinion: 8.50 mm·
36.Specifications:Spur gear with pinion· Gear: Z 37 module 0.5· Shaft passage diameter: 2.05 mm· External diameter of gear: 19.10 mm· Pinion: Z 10 module 0.6· External diameter of pinion: 7.32 mm·
37.Specifications:Spur gear with pinion· Gear: Z 37 module 0.5· Shaft passage diameter: 2.05 mm· External diameter of gear: 19.10 mm· Pinion: Z 13 module 0.5· External diameter of pinion: 7.60 mm·
38.Specifications:Spur gear with pinion· Gear: Z 34 module 0.5· Shaft passage diameter: 2.05 mm· External diameter of gear: 17.60 mm· Pinion: Z 13 module 0.5· External diameter of pinion: 7.80 mm·
39.Specifications:Spur gear with pinion· Z 34 module 0,5· Shaft passage diameter: 2,05 mm· External diameter: 17,60 mm· Pinion: Z 11 module 0,6· External diameter of 7,92 mm·
40.Specifications: Spur gear with pinion· Gear: Z36 module 0.5· Shaft passage diameter: 2.05 mm· External diameter of gear: 18,60 mm· Pinion: Z11 module 0.5· External diameter of pinion: 6.80 mm·
Loading prints...

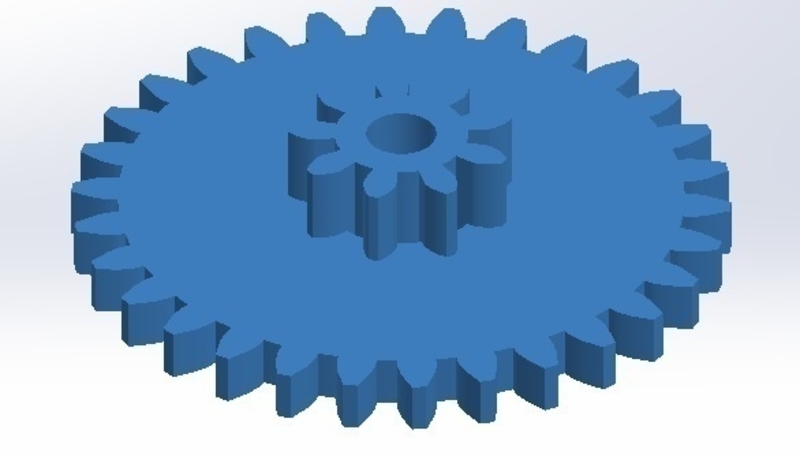

Pack-40-Gears
Creative Commons Public Domain
The creator has waived all rights to the work. You can copy, modify, distribute and perform the work, even for commercial purposes, without asking permission.
Licensed under CC0
