Pack-30-Gear:
Spur-Ring-Rack:
Number of teeth: 9/18 _ 9/27 _ 9/36 _ 9/45 _ 9/54 _ 9/63 _ 9/72 _ 9/81 _ 9/90
Reduction: 1/2, 1/3, 1/4, 1/5,1/6,1/7,1/8,1/9,1/10
Addendum: 2,5 mm
Contact angle: 20º
Shaft hole diam: 10 mm
Loading prints...

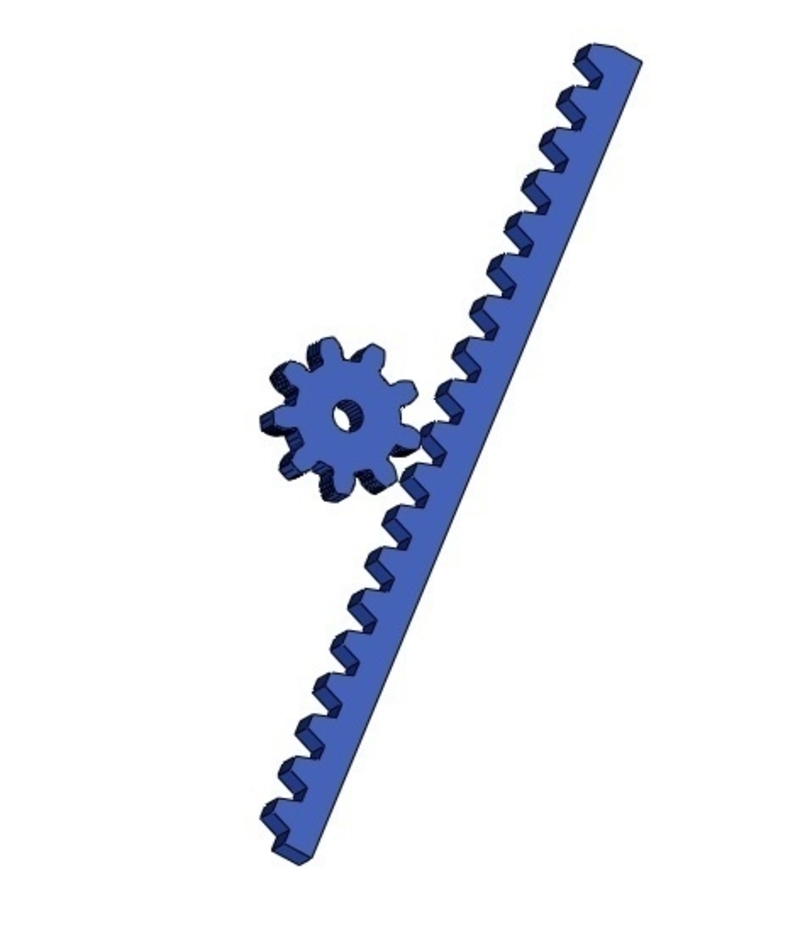

Pack-30-Gears_SPUR-RACK-RING_
