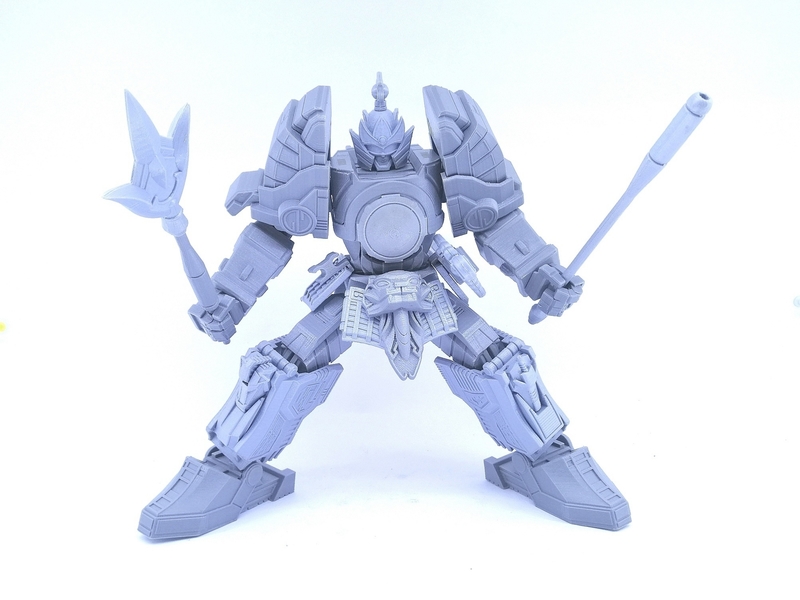

Fully Articulated Lightning Samurai not Thunder Megazord, Android Game Version. Files have been checked in slicer software and 100% work:
Full preview: https://youtu.be/C0ilJxdfs3s
-Improved Design
-27 cm tall (1:170)
-Easy to print
-No Support
-No Screw
-Separated Pieces
-Easy to Assemble
-Most join are ball joint some are swivel joint
-Best print orientation for maximum strength result
-Gaps tolerance are 0 mm to avoid loose joint (Use sand paper or cutter for adjustment)
Tools you need:
-Cutter
-Super Glue
-Sand Paper
IMPORTANT TIP:
-Print ball joint part using PETG material and 100% infill for maximum strength
-Use Super Glue to tighten the joins for long term use: https://www.youtube.com/watch?v=Wuw5QdK_L88
-For finishing touch:https://www.youtube.com/watch?v=0vgynnYzo08
Point of Articulation:
-Head 360°rotation, 30° Up, 10 ° Down
-Shoulders join at the chest and can move inward
-Shoulders 360° rotation up and down
-Chest Join, 15° up,15° down
-Waist swivel 30° left and right
-Elbow joint 90° movement
-Wrist swivel 45°
-Thigh join 90° Front, 45° back, 90° outward
-Thigh swivel 45°
-Double jointed knee 120° back
-Ankle tilt, 35° inward, 10° outward, 20° Up, 40° Down, 10° left, 10° right
-Updated hand with articulated fingers
Note: email [email protected] if you got any errors. Thanks and Enjoy
3D PRINTING SETTINGS
Sample Print Setting:
Nozzle: 0.4mm
Layer: 0.1mm
Filamen: Esun PLA+
Temperature: 205°C
Speed: 40/s
Skin/top/bottom: 0.8mm
Infill: 40%
Loading prints...
LIGHTNING SAMURAI NOT THUNDER MEGAZORD NO SUPPORT
Creative Commons Public Domain
The creator has waived all rights to the work. You can copy, modify, distribute and perform the work, even for commercial purposes, without asking permission.
Licensed under CC0
