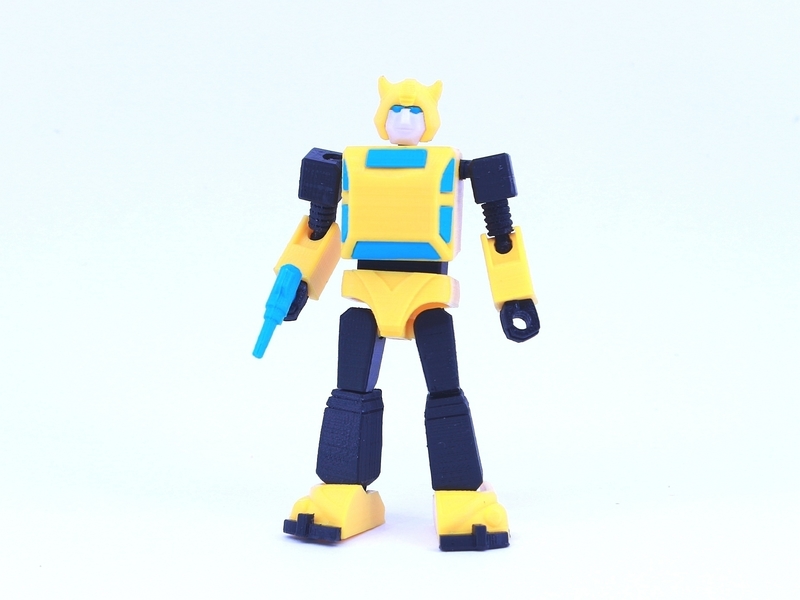

G1 Bumblebee, fully articulated model but not transformable.
VIDEO PREVIEW: https://youtu.be/mI5ogQVoiY4
Try G1 Optimus Prime for free: https://bit.ly/2DVZKgj
- Skale: 1:30 (10cm)
- Coloring can be done by using different color of filament (detail on files name)
- No Support
-Gap tolerance: 0mm balljoint, 0.05mm swivel, 0.05 peg joint
-Best print orientation for maximum strength result
-Easy to print
-Easy to assemble
-Easy to rescale
More update: https://www.instagram.com/toymakr3d/
Point of articulation:
1. Neck ball joint
2. Abdomen ball joint
3. Shoulders ball joint
4. Upper arm swivel joint
5. Elbow double ball joint
6. Wrist swivel
7. Waist swivel
8. Hip ball joint
9. Thigh swivel joint
10. Knee double ball joint
11. Ankle ball joint
Accesories :
- Gun
IMPORTANT TIPS:
- To fix loose ball joint for long term use: https://youtu.be/M1wy6QLZC8c
- Cutter or sand paper for tolerance adjustment
- Use super glue for splited parts
Note:
Email me [email protected] if you got any error Enjoy, Like, and Share
3D PRINTING SETTINGS
Sample Print Setting:
Nozzle: 0.4mm
Layer: 0.1mm
Filamen: PLA
Temperature: 200°C
Speed: 40/s
Skin/top/bottom: 0.8mm
Infill: 25%
Loading prints...
ARTICULATED G1 BUMBLEBEE - NO SUPPORT
Creative Commons Attribution-NoDerivatives
You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.
Licensed under CC BY-ND
