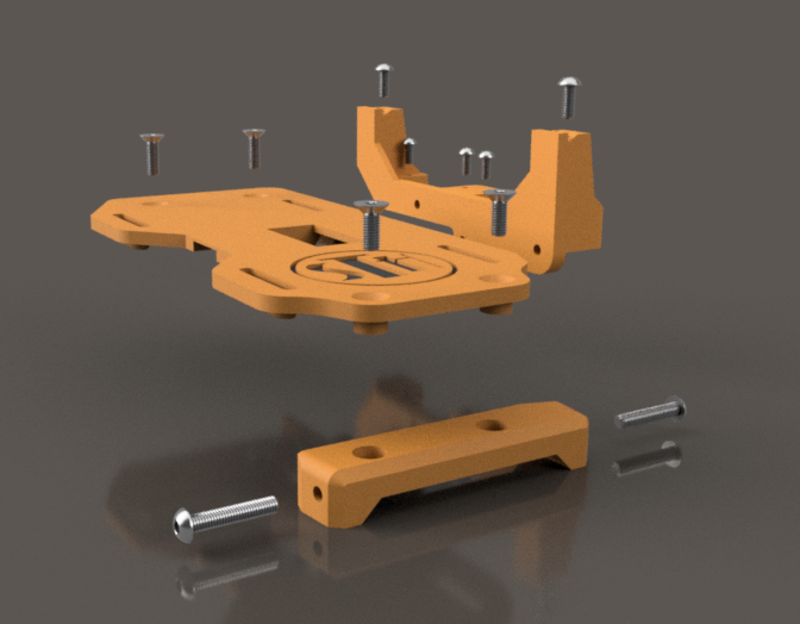

This kit is to relocate the shift and locker servos and provided a light weight low profile battery tray that supports smaller lipo’s and full size stick packs. It is also adapted to specifically accommodate the Reef’s RC 99:Micro 89oz Servo.
Reef’s RC 99:Micro 89oz Servo. - https://www.reefsrc.com/store/...
If you are running the TRX4 Sport or just a 2 speed transmission, all you need is the battery tray and Frame Brace.
Hardware
2 – 3x6mm Button
2 – 3x8mm Counter
2 – 3x18mm Button
6 – 2.5x6mm Button
Re-Used From Truck
3 – 3x8mm Button
2 - 3x10mm Button
REEFES 99.Micro Servo Only 6 – Saver Adapters
3 – 2.4 x 10mm Button
Loading prints...
TRX4 Compact Battery Tray with Shift & Lock Servo Mount
Creative Commons Public Domain
The creator has waived all rights to the work. You can copy, modify, distribute and perform the work, even for commercial purposes, without asking permission.
Licensed under CC0
