This is my take on the Brazen Scale Chassis adaptation for an 11.5in WB rig with an Ford G-Made Komodo Mounted Body. Inside the Frame Rail Width is 76mm for all parts.
You can Purchase the Brazin Rails and Skid from Brazin Scale.
Chassis: https://www.brazinscalerc.com/chassis/all-time-low Brazin Printed Parts "SKID TRX4": https://www.shapeways.com/shops/brazin-scale-rc

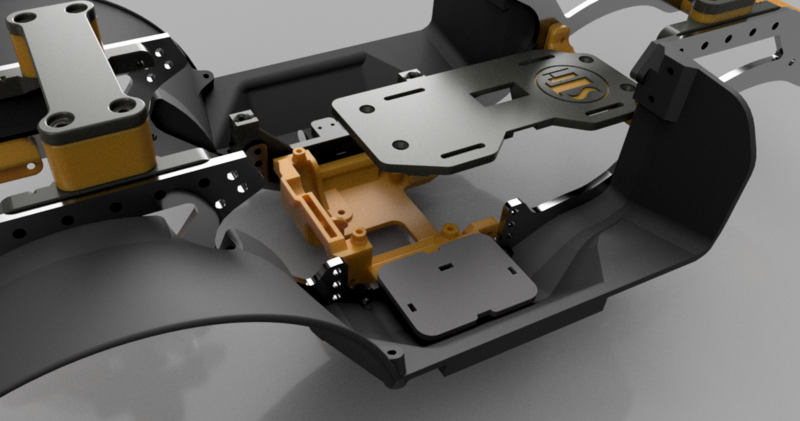

The design incorporated an adapter plate to use the stock TRX4 Steering Servo mount, Comp Bumpers with Servo Winch Mounting options, Front Fenders, Boat sides to close out the cab, LCG Battery tray with 2 speed shifter mount incorporated, adjustable locker servo mount, Low CASTEL/HOLMS HOBBIES ESC Mount and Panhard Mount.
Front Lower Links with Stock TRX4 Rod ends need to be 39mm (Short Jato Rod End 46mm) (ROD not EYE to EYE)
Front Upper and Panhard, use Stock Links. Adjust the Rod end for Alignment/Pumpkin Clock.
Rear Lower Links with Stock TRX4 Rod Ends need to be 70mm (Short Jato Rod Ends 77mm) (ROD not EYE to EYE)
Rear Uppers are the stock Front Lowers. Adjust the Rod end for Alignment/Pumpkin Clock
Loading prints...
Brazin Scale ATL Chassis Parts (STH Style) for TRX4
Creative Commons Public Domain
The creator has waived all rights to the work. You can copy, modify, distribute and perform the work, even for commercial purposes, without asking permission.
Licensed under CC0
Files Included
28 downloadable files:
