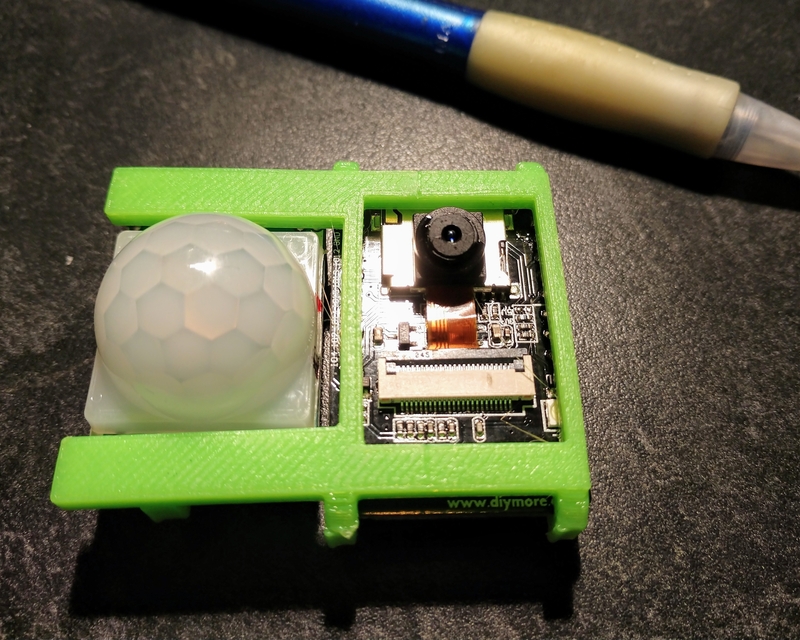

This is mounting bracket for a DIYmore ESP32 Camera (AI Thinker) and a SR-501 motion sensor. The design prints well with standard PLA but higher density and quality are recommended to ensure strength of the mounting tabs. Supports are needed for printing and some cleanup of the mounting clips is needed to clear the space for the circuit boards. The frame can be flexed to snap the boards into the mounting clips. Latest version has 'hinged' base plate with access to sensor adjustments. (Use small paperclip wire for hinge pins.)
Loading prints...
ESP Camera & Sensor Mount
