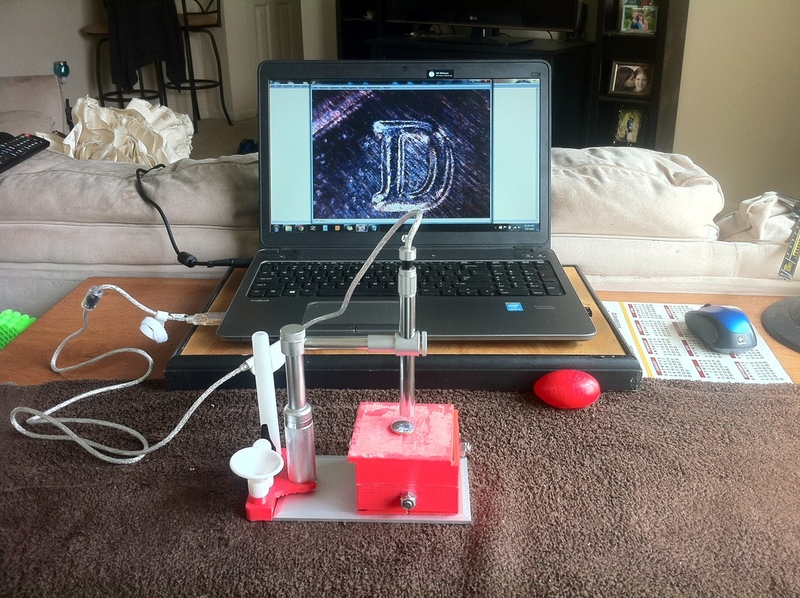

These are accessories for the Vividia usb digital microscope seen here:
The 2 axis manual stage is good for making small measured motions. Using the 1/4-20 thread with the point of the hex nut as a displacement indicator you can measure down to .0083" Silly putty works great for a holding the stage to the scope mount. The software for the scope is free here:
Read more about why plastic turns white under stress here:
Video Here:
