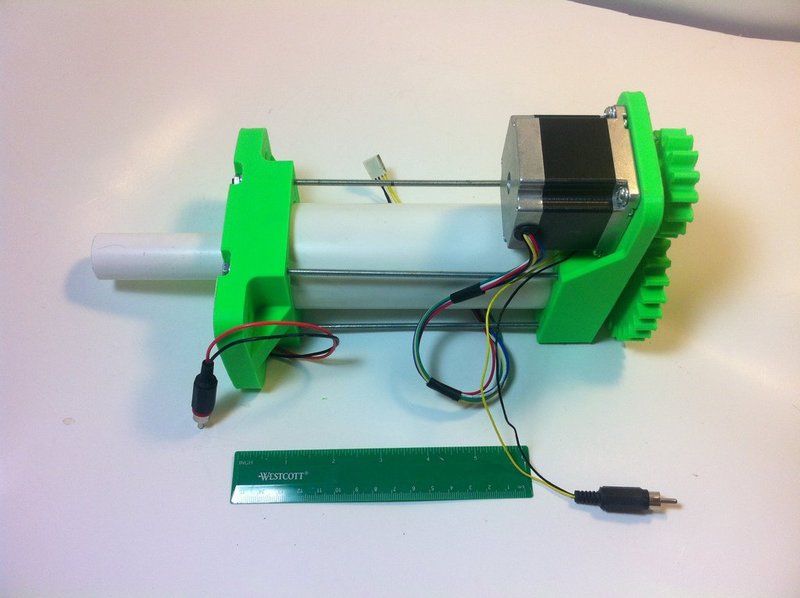

You can buy linear actuators off the shelf, but NONE that allow for accurate displacement measurement AND high load rating for this price. The finished model shown can push or pull up to 300 lbs and it moves at about 0.5 in/min. I used it on a special project but you can use it for whatever you want!
This assembly is a component of the Testrbot open source universal test machine: http://www.instructables.com/i...
I've also provided 'Base Type 2' files if you want to make a higher speed configuration. (In this config you wouldn't need the gears, as seen in photo 3.)
Loading prints...
3D Printed High Load Linear Actuator
Creative Commons Attribution-ShareAlike
You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.
Licensed under CC BY-SA
Files Included
8 downloadable files:
Downloaded: 244 times
