Update : modified Phoenix source code added to the files part needed : 18 mg90s servos 18 623 bearing 1 arduino nano 1 servo controler 1 buzzer 2 led +resistor 1 wireless ps2 controler 1 rc on-off switch 1 or 2 ubec regulators diodes. some siliconed glue to make grip for the foots. (or ninja flex) many m3 nuts and bolts and very very little fingers to plug all wire together. video : https://www.youtube.com/watch?v=Igf-VEXJJVw sorry for te poor camreman and for the delay on some actions ( i'm trying to remember what all the ps2 button do ;) ) it was made with 123d design. the code is the kurt's phoenix heavely modified Pay attention, in my design all the legs are the same : no left and right design, you must invert rotation by code.
Loading prints...

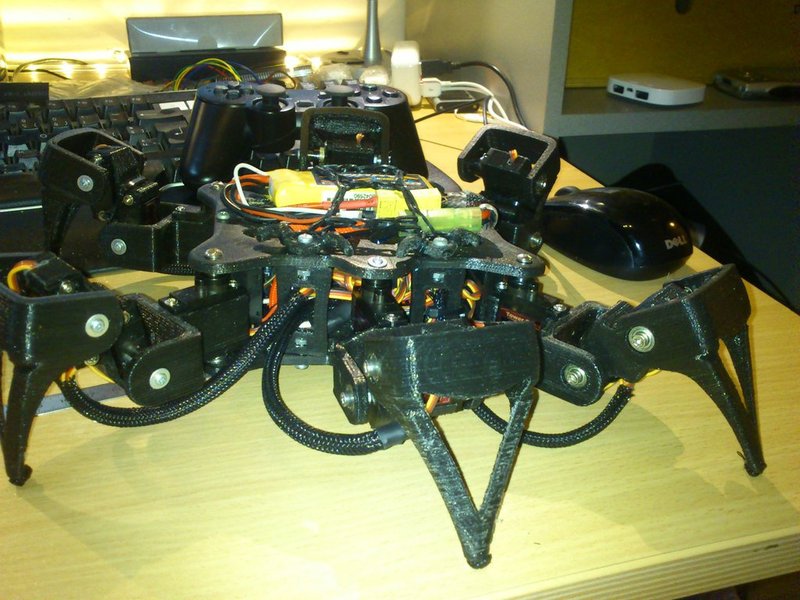

Hexapod 18 dof micro servo
Creative Commons Attribution-NoDerivatives
You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.
Licensed under CC BY-ND
