Designed to use three Pololu Stepper Motors ... a Pololu 2267 NEMA 17 SY42STH38-1684A, a Pololu 1205 NEMA 11 SY28STH32-0674A and a Pololu 2268 NEMA 17 BiPolar Stepper Motor SY42STH-1684A or the shorter Pololu.com 2689 or longer Pololu.com 2690
Also uses two UniPolar 28BYJ-48 Stepper Motor (find them on eBay for about $3 ea.)
Designed to be another X-Project for the "RoboGuts™ S.T.E.A.M. Education Program" http://www.R2Pv1.com/

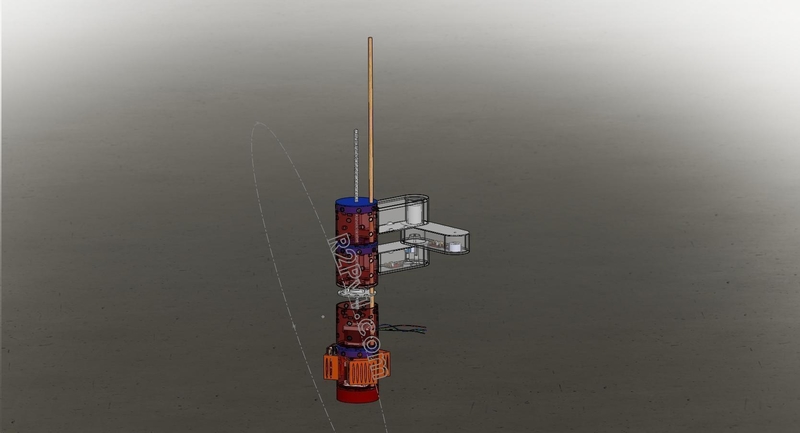

Stepper Motor Robotic Arm
Loading prints...
Pololu-mini Stepper Motor Robotic Arm
1
like
0
collections
Creative Commons Attribution-NonCommercial-NoDerivatives
You can download and share as long as you credit the creator, but you cannot change the material or use it for commercial purposes.
Licensed under CC BY-NC-ND
Files Included
15 downloadable files:
2ndLower1stArmBox-UniPolar_28BYJ-48_Stepper_Motor-4-miniStepperRoboticArm.STL
STL Model
1stMotorBox-Pololu_2267_SY42STH38-1684A_BiPolar_Stepper_Motor-4-miniStepperRoboticArm.STL
STL Model
2ndMotorBox-Pololu_2268_NEMA_17_BiPolar_Stepper_Motor_SY42STH-1684A-4-miniStepperRoboticArm.STL
STL Model
