This version has a rate of reduction 5:1, it was to make more certain, the number teeth of Gear in put is 9, so the size of teeth is larger, easy to print more.
Please see more link:
http://www.instructables.com/i...
https://pinshape.com/items/221...
The following is some changes:
1. Reversing bolt of out put shaft
2. Gear in put: 9 teeth and add a flatform 3mm
3. Wheel out put has changed
4. Added more an option: cover out put with 2 bearings, if someones wants :)) (bearing for shaft out put)
Other details are not changed from the previous version and of Janth (thanks Janth).
All . Stl files are checked with Netfabb.
Loading prints...

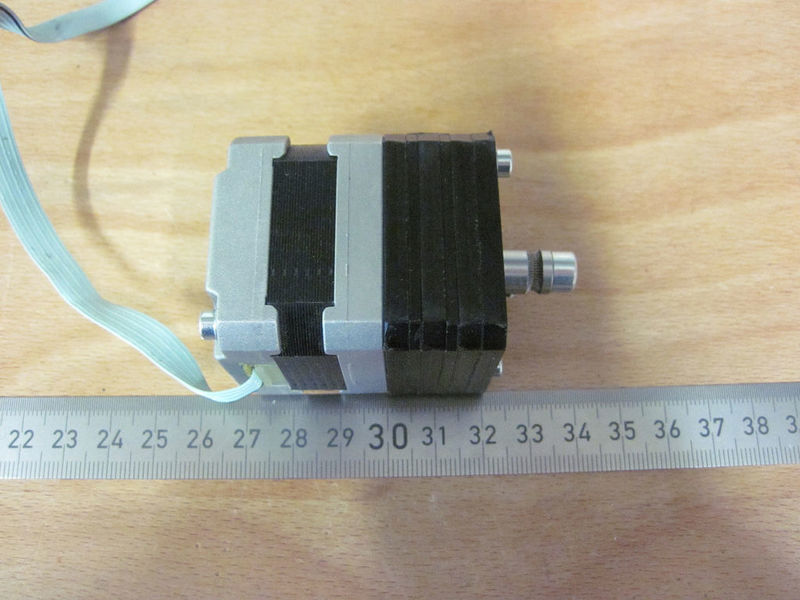

Planetary Gearbox V1 for Nema17 Stepper motor
Creative Commons Attribution-NoDerivatives
You can download, share, and use commercially, but you cannot change the material in any way or use it to make something new.
Licensed under CC BY-ND
