Summary

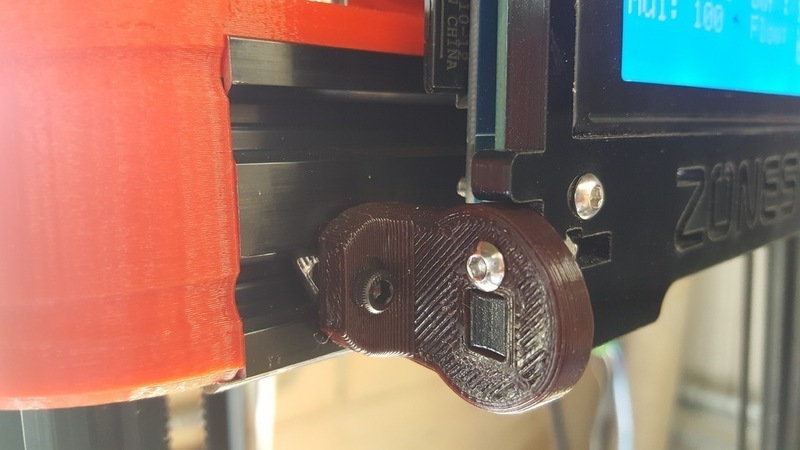

Mounts to attach the LCD to the 2020 top rail of the Zonestar D810 delta printer.
Uses the original attachments on the LCD acrylic mounting plate.
Attach to 2020 extrusion top rail with M3x20 screws and M3 boat nuts
Print Settings
Printer:
ZoneStar D810 Rafts:
No Supports:
No Resolution:
0.3mm Infill:
25%
Post-Printing
May need to open out screw holes a little
How I Designed This
Publicly available at https://cad.onshape.com/documents/57c0c2235b403411c5711f00/w/53940e98183c71269c4aa970/e/87f1bd68252786a99d46d478
