Summary
A couple of variations on the original...
Mounting lugs, to attach to the 2020 extrusion bottom rail of a Zonestar D810 delta printer. Attach with M3x25mm screws nd M3 boat nuts
Opened up the viewing angles to the LED
Added labels underneath each button (need to print on a good flat bed for these to be legible)
Added labels on the top of each button.
Print Settings
Printer:
ZoneStar D810 Rafts:
Doesn't Matter Supports:
No
How I Designed This
Publicly available at
https://cad.onshape.com/documents/57c0bd809ccaed10ec620ad9/w/1803b5257794977257ddff00/e/7917e09d6eda96c795b184e2
With thanks to Hergonoway at Reprap.org who originally di dhte lugs
Loading prints...

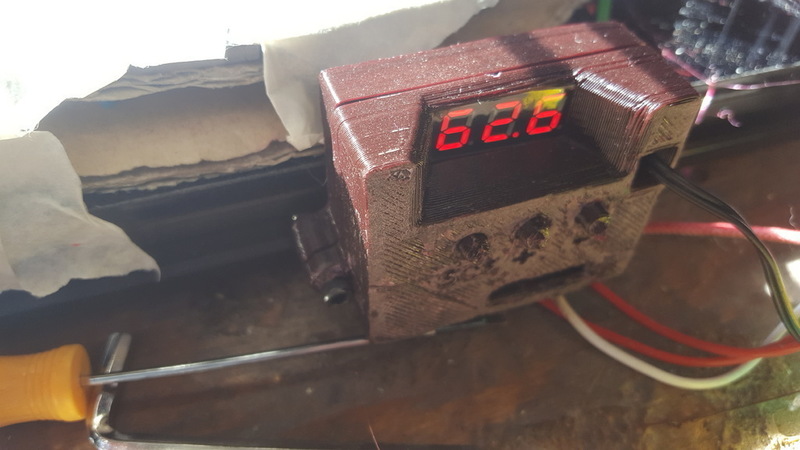

D810 thermostat case
