Rockwell tablesaw wingnut 9/16
Free

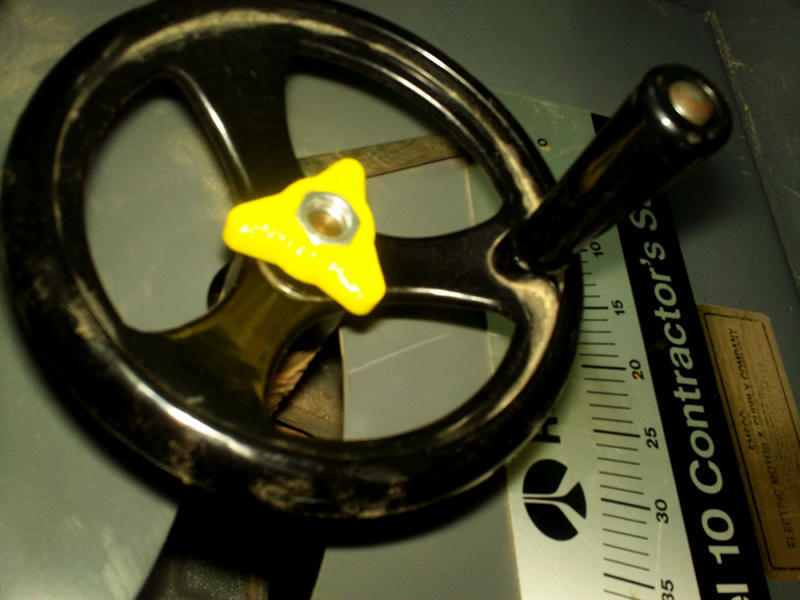

Summary This a replacement for the locking wingnut for delta/rockwell tablesaw adjustment handles. Customized version of http://www.thingiverse.com/thing:70494 Created with Customizer! http://www.thingiverse.com/apps/customizer/run?thing_id=70494 Instructions Print this out with at least 3 shells and 10% infill. This fits the 9/16 nut very snugly. You may have to warm up the nut and the plastic part with a heat gun and tap together with a hammer. Customized using the following options: wing_h = 11 wing_count = 3 roundness_ratio = 46 total_d = 37 nut_d = 16.11 wing_thick_d = 3 hex_nut = 1 nut_shoulder_x = 3 nut_shoulder_z = 4 nut_th = 8.4 thread_d = 10.72 wing_thin_d = 14

Loading comments...

Loading prints...

Rockwell tablesaw wingnut 9/16

likes
0 collections
Creative Commons Attribution-ShareAlike

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given and your contributions are under the same license.

CC BY-SA Licensed under CC BY-SA
Files Included

1 downloadable file:

View 3D
thumbnut_20140105-12873-1bsva12-0.stl
STL Model
446.1 KB
File size
Free download - login required
Downloaded: 35 times
