Compact Bowden Extruder for MK7 Drive Gear (1.75mm)
Free

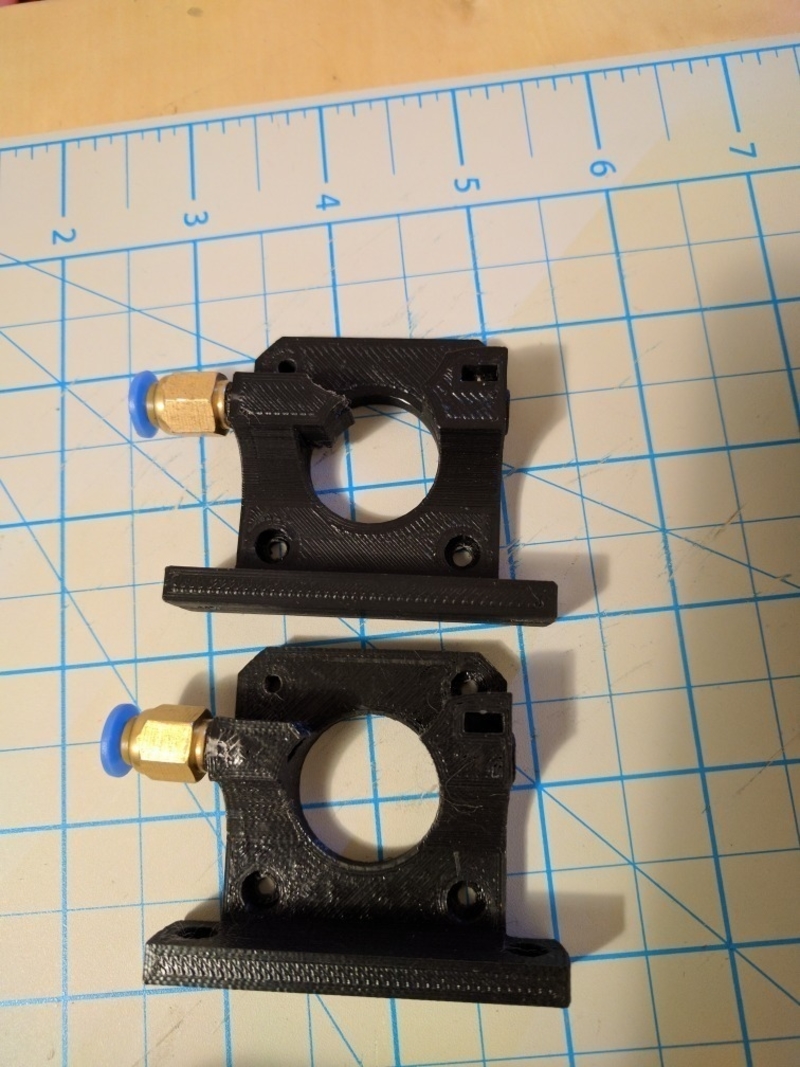

Summary All Original credit goes to tech2c. Heres why i did this. I was slightly under extruding. Different filaments gave me different results when calibrating my E steps. So,i noticed that the gap between the mk7 drive gear and the mount was large. So upon reading more into it, it should be smaller. Also this would also help when using flexible materials. So i decided to extend the mount closer to the drive gear. Now my extrusion is perfect. I suspect the filament bent some previously. **This was my case and may not be yours. Just sharing for others that may need it. For more info, go to the original thing. Print Settings Printer: Hictop Prusa i3 Rafts: No Supports: No Resolution: 0.12 Infill: 50% Notes: I printed at 0.12 and 3 perimeters for a strong part. You can obviously print at larger layer height and maybe less infill. Post-Printing use razor/file etc, to ensure the filament path is smooth and unobstructed

Loading comments...

Loading prints...

Compact Bowden Extruder for MK7 Drive Gear (1.75mm)

likes
1 collection
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

2 downloadable files:

View 3D
compact_bowden_drive_extruder_idler_V2.stl
STL Model
~1-5 MB
File size
View 3D
compact_direct_drive_extruder_main_v2.stl
STL Model
~1-5 MB
File size
Free download - login required
Downloaded: 33 times
