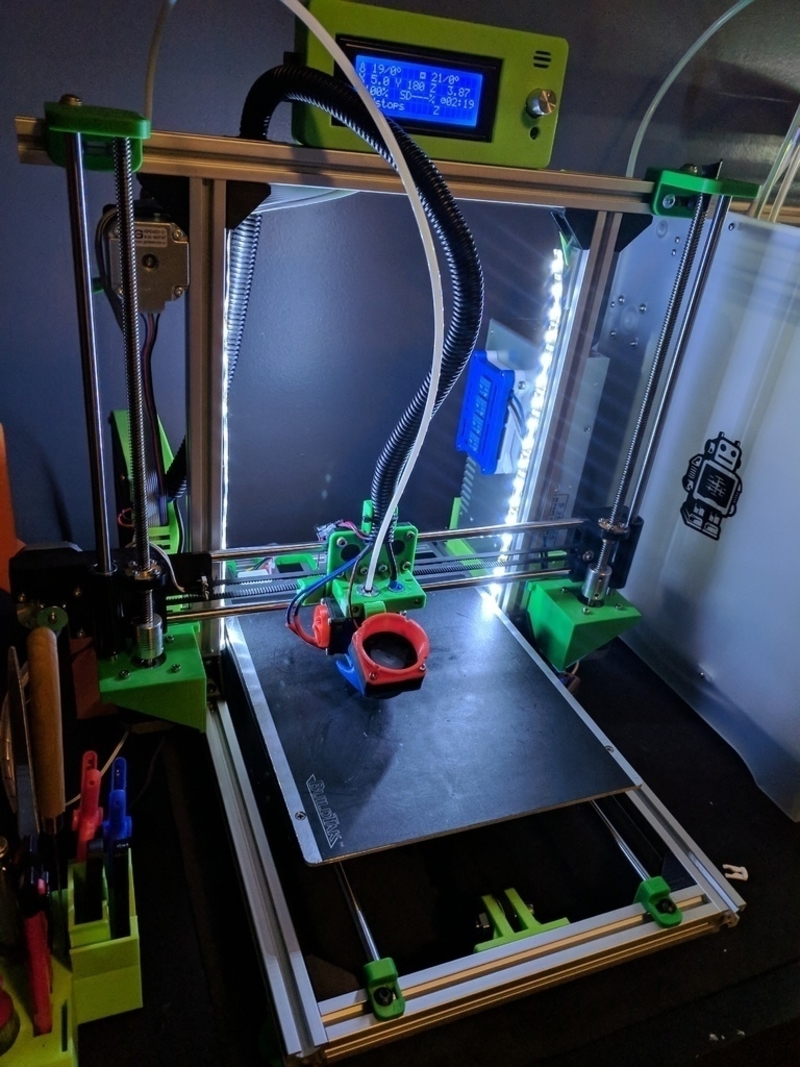

Hictop Prusa i3 3DP08 acrylic convertion to 2020 extrusion frame
Free
Summary The Hictop Prusa i3 Acrylic 3DP-08 printed great for me. Only problem was ghosting on prints with speeds over 60mm/s. So after the great success of my hypercube i decided to also built a 2020 frame and transfer all hardware and electronics over. I have gained 35mm in Z height in the process. I have attached my Sketchup file for those that may want to modify the stuff. I recommend getting you 2020 extrusions from Misumi. They dont charge you per cut and have the right extrusions that have the 6mm channel. They are the best price around anyways too. The fan cover im using is thing 1750976 and the fan duct is thing 510957. i use extruder thing 1099016 BOM for 2020 (3) 440mm (2) 340mm (2) 237mm Whole bunch of M5 bolts and T nuts The "shoes" STL is to be printed with TPU to recude noise, vibrations and printer movement. Print Settings Printer: Prusa i3 Rafts: No Supports: Yes Resolution: .20 Infill: 65% Notes: Printed with ABS using honeycomb infill. Supports where necessary.

Loading comments...

Loading prints...

Hictop Prusa i3 3DP08 acrylic convertion to 2020 extrusion frame

likes
1 collection
Creative Commons Attribution

You can distribute, remix, adapt, and build upon the material in any medium or format, as long as attribution is given to the creator.

CC BY Licensed under CC BY
Files Included

21 downloadable files:

View 3D
Z_T_Brace.stl
STL Model
43.1 KB
File size
View 3D
Feet.stl
STL Model
166.1 KB
File size
View 3D
Z_Shaft_Clamp_R.stl
STL Model
347.1 KB
File size
View 3D
Extruder_bracket.stl
STL Model
494.6 KB
File size
View 3D
PSU_case.stl
STL Model
733.4 KB
File size
View 3D
Z_Shaft_Clamp_L.stl
STL Model
316.0 KB
File size
View 3D
X_Carriage_Leveler.stl
STL Model
364.1 KB
File size
View 3D
Cable_tie_2020.stl
STL Model
844.5 KB
File size
View 3D
Z_T_Brace2.stl
STL Model
41.8 KB
File size
View 3D
Display_case.stl
STL Model
928.1 KB
File size
View 3D
Z_Motor_Mount_L.stl
STL Model
1.6 MB
File size
View 3D
Y_Shaft_Clamps.stl
STL Model
762.9 KB
File size
View 3D
Shoe.stl
STL Model
976.4 KB
File size
View 3D
Z_Motor_Mount_R.stl
STL Model
1.6 MB
File size
View 3D
Corner_bracket_long.stl
STL Model
161.6 KB
File size
View 3D
lm8uu_holder.stl
STL Model
275.8 KB
File size
View 3D
Y_Idler_Mount.stl
STL Model
356.2 KB
File size
View 3D
Corner_bracket.stl
STL Model
263.5 KB
File size
View 3D
X_Carriage_e3dv6_lj12a34zbx_exp.stl
STL Model
1.9 MB
File size
View 3D
Y_Motor_Mount.stl
STL Model
1.6 MB
File size
View 3D
Motherboard_case.stl
STL Model
2.3 MB
File size
