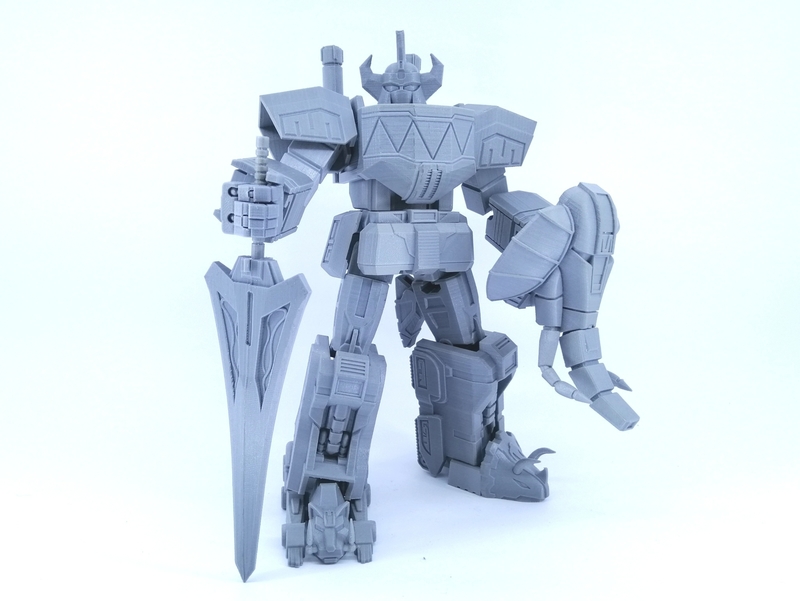

Fully Articulated Power Robot not Dino Megazord, Android Game Version. Files have been checked in slicer software and 100%work:
Full preview: https://youtu.be/VkvnZ4x56i8
More Updates: https://www.instagram.com/toymakr3d/
-24 cm tall Easy to print
-No Support
-No Screw
-Separated Pieces
-Easy to Assemble
-Most join are ball join some are swivel join
-Best default print orientation for best strength result
-Gaps tolerance are 0 mm to avoid loose joint (Use sand paper or cutter for adjustment)
Tools you need:
-Cutter
-Super Glue
-Sand Paper
IMPORTANT TIP:
-Print ball joint part using PETG material and 100% infill for maximum strength
-Use Super Glue or Nail Polish to tighten the joins for long term use: https://www.youtube.com/watch?v=Wuw5QdK_L88
-For finishing touch: https://www.youtube.com/watch?v=0vgynnYzo08
Point of Articulation:
-Head:360°rotation, 30° Up, 10 ° Down
-Shoulders join at the chest and can move inward
-Shoulders 360° rotation up and down
-Chest Join, 15° up,15° down
-Waist swivel 90° left and right
-Double jointed elbow -Wrist swivel 360°
-Thigh join 90° Front, 45° back, 90° outward
-Thigh swivel 45° -Double jointed knee 100° back
-Ankle tilt, 30° inward, 10° outward, 15° Up, 30° Down, 10° left, 10° right
-Updated hand with articulated fingers
Note: email [email protected] if you got any errors. Thanks and Enjoy
3D PRINTING SETTINGS
Sample Print Setting:
Nozzle: 0.4mm
Filamen: Esun PLA+
Temperature: 205°C
Speed: 40/s
Skin/top/bottom: 0.8mm
Infill: 40%
Loading prints...
ARTICULATED POWER ROBOT NOT DINO MEGAZORD NO SUPPORT
Creative Commons Public Domain
The creator has waived all rights to the work. You can copy, modify, distribute and perform the work, even for commercial purposes, without asking permission.
Licensed under CC0
Files Included
52 downloadable files:
